Artificial Intelligence Trainer
Includes:

1. Learning Platform for Artificial Intelligence Trainer
2. Artificial Intelligence (AI) refers to the simulation of human intelligence in machines that are programmed to think and act like humans.
3. It involves the development of computer systems and software that can perform tasks which would typically require human intelligence, such as learning, problem-solving, decision-making, speech recognition, and face recognition.

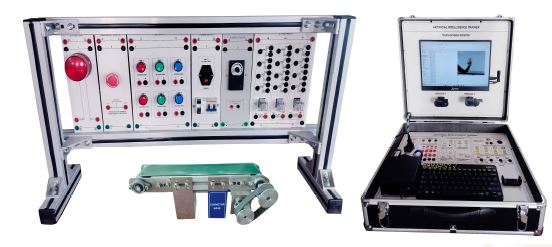

The Basic AI Trainer consists of:

1. AI CPU – Intel CPU Ultra
2. 2 Cameras
3. Wireless Keyboard and Mouse
4. 15.6" Touch Screen Industrial Monitor
5. 4 Input / 4 Output General Purpose Input Output (GPIO)
6. Linux Operating System

PRODUCT MODULES  AI CPU – INTEL ULTRA PROCESSOR SYSTEM

1. Intel Core™ Ultra 7 Processor (i7-1360P, 4P + 8E)
2. Chipset: F1CP
3. BIOS: AMI SPI 256 Mbit
4. Disk Capacity: As applicable

MEMORY

1. Technology: Dual Channel DDR4 3200 MHz
2. Maximum Capacity: 64 GB (32 GB × 2)
3. Socket: 2 × 260-pin SO-DIMM

GRAPHICS

1. Controller: Intel® Iris® Xe Graphics
2. HDMI: HDMI 2.0b
3. Maximum Resolution: Up to 4096 × 2160 @ 60 Hz
4. Multi Display: Quad Display (including outputs from Type-C)

EXPANSION SLOT

1. M.2 / WLAN
2. AUDIO
3. Interface: Realtek ALC233, High-Definition Audio

ETHERNET

1. Controller / Speed: Intel® I226-LM
2. Speed: 10 / 100 / 1000 / 2500 Mbps
3. Support: vPro
4. Connector: 1 × RJ-45

FRONT I/O

1. 2 × USB 3.2 Gen 2 (Type-A)
2. 1 × USB4 / Thunderbolt™ 4 (supports DP 1.4a display output)
3. 1 × USB 3.2 Gen 2 (Type-C, supports DP 1.4a display output)
4. 1 × Audio Jack (Headphone & Microphone)

REAR I/O

1. 2 × HDMI 2.0b
2. 1 × 2.5 Gigabit LAN
3. 2 × USB 3.2 Gen 2 (Type-A)
4. 1 × DC Jack

OTHERS

1. OS Support: Ubuntu 24.04 LTS

CAMERA 1

1. Resolution: 1280 × 720p
2. Focus Type: Auto Focus
3. Microphone: Built-in
4. Interface: USB, Driver-Free
5. Compatibility: Notebook / Computer
6. Product Size: 70 × 50.7 × 44 mm

CAMERA 2

1. Maximum Resolution: 720p @ 30 fps
2. Image Sensor: 0.9 MP
3. Focus Type: Fixed Focus
4. Lens Type: Plastic
5. Built-in Microphone: Mono
6. Microphone Range: Up to 1 m
7. Diagonal Field of View (DFoV): 55°
8. Universal Mounting Clip for laptops, LCDs, or monitors

WIRELESS KEYBOARD AND MOUSE

1. Connection Type: USB Receiver
2. Connection Range: Up to 10 meters
3. Keyboard: 79 Keys
4. Mouse: 3 Buttons

TOUCHSCREEN MONITOR

1. Touch Screen Monitor
2. Size: 15.6"

DIGITAL I/O

1. 4 Digital Inputs
2. 4 Digital Outputs (Relay Contact 10A)
3. Input Terminal: 4 mm
4. Output Terminal: Banana Socket
5. HDMI Port

POWER SUPPLY MODULE

1. AC POWER SUPPLY  - Input: 100–240 VAC
2. DC POWER SUPPLY  - 24 VDC  ,12 VDC  ,5 VDC

OPERATING SYSTEM EXPERIMENTS

1. Experiment 7: PaddleOCR with OpenVINO
2. Experiment 8: Optimize YOLOv8 Keypoint Detection with OpenVINO

EXPERIMENTS WITH AI APPLICATION MODULE

1. Experiment 1: Gesture Volume Control
2. Experiment 2: Hand Gesture Finger Counter
3. Experiment 3: Color Detection with Linear Actuator
4. Experiment 4: Color Detection with AC LED
5. Experiment 5: Left and Right Hand Detection
6. Experiment 6: Object Detection with Strobe Light
7. Experiment 7: Motion Control with Robotic Arm
8. Experiment 8: IoT Module

MANUALS

1. All manuals are written in English
2. Model Answer Manual
3. Teaching Manuals

GENERAL TERMS

1. Accessories will be provided where applicable
2. Manuals and training will be provided where applicable
3. Designs and specifications are subject to change without notice

ARTIFICIAL INTELLIGENCE TRAINER LEARNING PLATFORM

1. (50 Students, Valid for 2 Years)
2. Cloud-based solution with AI-driven features to support educational providers in delivering Artificial Intelligence Trainer programs
3. Centralized marketplace enabling learners worldwide to discover and enroll in programs
4. Integrated platform for course creation, management, and assessment without external dependencies
5. Automatic student portfolios based on acquired skills for employer sharing
6. Flexible and stackable digital credentials for skill verification and career progression
7. Comprehensive learning platform supporting blended and lifelong learning
8. Supports multiple online learning formats with secure and adaptable delivery
9. Tools for interactive activities and community engagement
10. Fast implementation with minimal IT resource requirements
11. Robust tools for creating, managing, and distributing custom courses for educators of varying technical expertise

SYSTEM – LINUX (UBUNTU 24.04)

1. Ubuntu 24.04 is a long-term support version of the Ubuntu operating system based on the Linux kernel, offering stability, security updates, and performance improvements suitable for AI and educational applications.

WEB APPLICATION – JUPYTER NOTEBOOK

1. Jupyter Notebook is an open-source web application that allows users to create and share documents containing live code, equations, visualizations, and explanatory text. It is widely used in data science, machine learning, and education for interactive and collaborative work.

SOFTWARE TOOLKIT – OPENVINO

1. OpenVINO (Open Visual Inference and Neural Network Optimization) is an open-source toolkit developed by Intel to accelerate the deployment of high-performance computer vision and deep learning models on Intel CPUs, GPUs, VPUs, and FPGAs.

LEARNING OBJECTIVES

1. Introduction to Artificial Intelligence
2. Introduction to AI Training Kit (Hardware Setup, Ubuntu Setup, Jupyter Notebook Setup)
3. Introduction to OpenCV

EXPERIMENTS WITH OPENVINO TOOLKIT

1. Experiment 1: Image Classification
2. Experiment 2: Image Segmentation
3. Experiment 3: Text Detection
4. Experiment 4: Object Detection using Webcam
5. Experiment 5: Image Colorization
6. Experiment 6: Meter Reading

ADDITIONAL BENEFITS

1. Comprehensive resources for skill development and employability
2. Fully scalable platform supporting growth in learners and courses
3. Tools for creating high-quality courses and global institutional presence
4. Unified micro-credential framework for enhanced recognition
5. E-portfolios documenting skill acquisition and achievements
6. Reduced operational costs in course delivery
7. Focus on industry-aligned, employable skills
8. Improved institutional rankings through quality education and student support
9. Access to advanced tools enabling superior learning experiences
