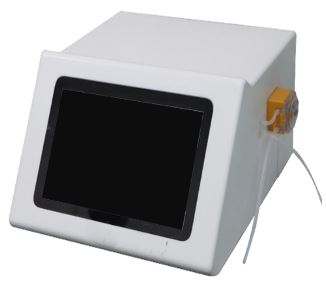

Automatic Density Meter

1. Application: measures density, specific gravity, Brix, % alcohol and more with automatic temperature control from 15 to 50°C. and use for pharmaceutical quality control, Food and beverage analysis, Chemical and petrochemical production Research laboratories.

Technical specification:

1. - Dimensions (W×D×H) mm: 430 × 290 × 300 (±20mm)
2. - Range: Min.0 to Max.3 g/cm3
3. - Ambient temp: Min. 10 °C to Max. 35 °C
4. - Temp. Control: Intelligent Peltier temperature control system
5. - Wetted parts: Borosilicate glass, PTFE
6. - Temp. Stabilisation Time: Smart stabilisation based on sample detected
7. - Measuring System: oscillating U-tube with reference oscillator for enhanced drift protection
8. - Wetted Parts: borosilicate glass, PTFE
9. - Temp. data:
10.   • Range: Min. 10°C to Max. 95 °C
11.   • Accuracy: ±0.05 °C
12.   • Reproducibility: ±0.02 °C
13.   • Resolution: ±0.01°C
14. - Humidity: 85% not condensing
15. - Pressure: Min. 0 to Max. 10 bar (0 – 145 PSI)
16. - Sample Size: Approx. 2ml
17. - METHODS: Density (g/cm3), Specific Gravity, Sucrose %w/w (°Brix), Ethanol (%w/w, %v/v),
18. - Reading Type: Single shot (discreet)
19. - Reading Time: 15 seconds (not including temperature stabilization time)
20. - Resolution: 0.00001 g/cm3
21. - Accuracy: 0.0001 g/cm3
22. - Precision (Reproducibility): 0.0001 g/cm3
23. - Air Drying: Integrated air pump and humidity sensor
24. - User Interface: Full colour, 7”, capacitive touchscreen
25. - Memory: 100,000+ Readings (4GB expandable memory)
26. - Interfaces: USB, LAN
27. - Power: AC 220V-240V

Requirement:

1. - Standard and Compliance: CE, FDA, ASTM, ISO 9001 or equivalent.
2. - Language: English language available on machine and manual.
3. - Warranty: At least 2 years on Mechanical, Electrical parts and Services.
4. - Include Installation and Training:
5. • On-site installation performed by certified technicians.
6. • User training covering equipment, full operation, maintenance, (minimum 1 full training session) at least 2 trainees.
7. • Provision of training materials, including user manuals
