Complies with International Standard:
IS: 2386 (Part-1)
Purpose:

• This instrument is used to determine the elongation index of aggregates.
• A particle is considered elongated when its length (longest dimension) exceeds 1.8 times the midsize of the sieve fraction.

Significance & Use:

• This method classifies aggregate elongation by measuring the length of individual particles.
• The test is not applicable to material retained on a 63.0 mm BS test sieve.

Construction Details:

• ISI Marked.

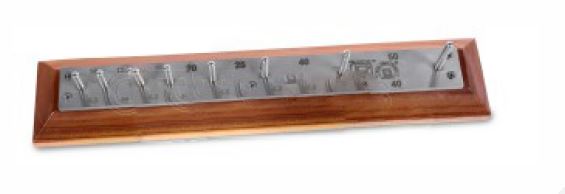

• Consists of a hardwood base with vertically mounted stainless steel (S.S.) studs.
• Eight S.S. studs are mounted.
• Aggregate is separated into seven sieve fractions (63 mm to 6.3 mm); each fraction is examined individually.
• Elongation index is determined by the mass percentage of particles that fail to pass between the respective pins.

Passing / Retained (mm)                        Distance Between Nails (mm)
63 / 50                                                                      —
50 / 40                                                                    81.0
40 / 31.5                                                                 58.5
31.5 / 25                                                                   —
25 / 20                                                                    40.5
20 / 16                                                                    32.4
16 / 12.5                                                                 25.6
12.5 / 10                                                                 20.2
10 / 6.3                                                                  14.7
Note:

• Electronic Weighing Balance and Test Sieves (as per Table 5 of IS:2386 Part I) are essential to perform the test and are available at extra cost.

Technical Specification:

• Overall Dimensions (L × W × H): 17 × 3 × 4 inches (Approx.)
• Weight (Approx.): 1.320 kg
