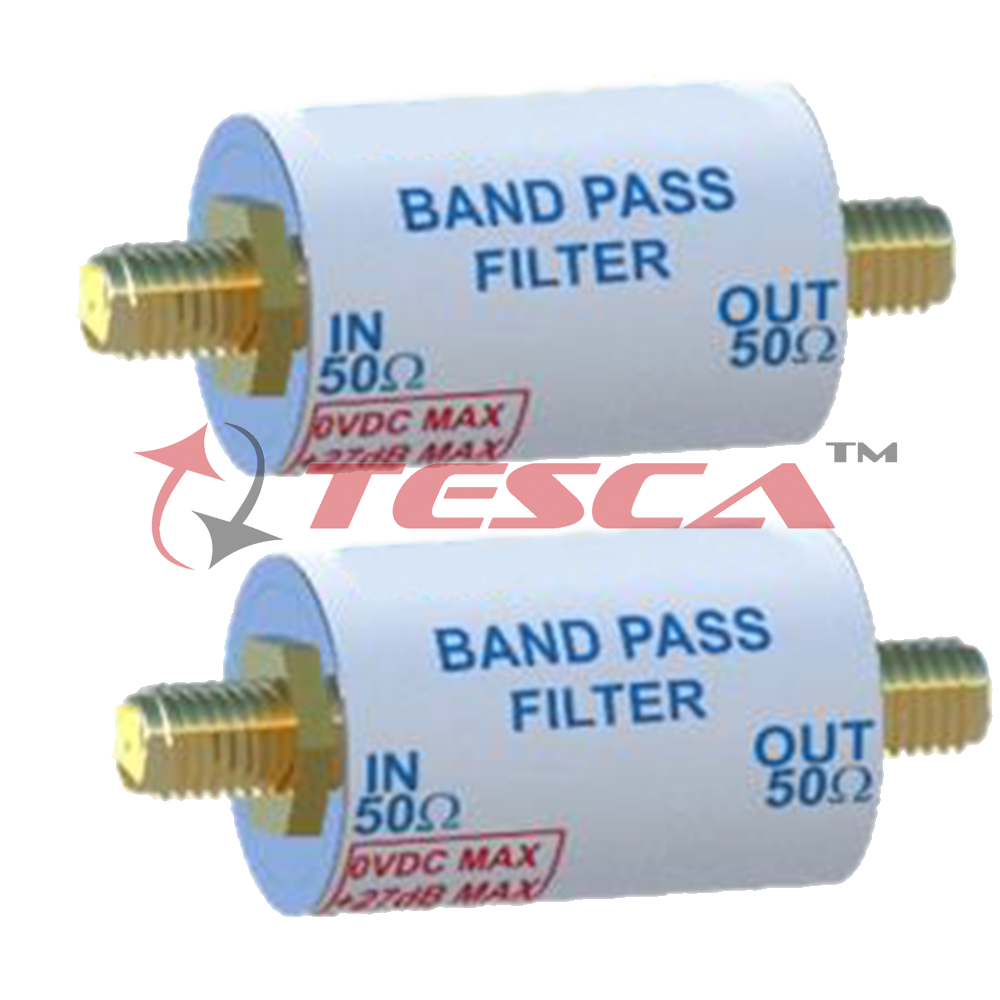

Bandpass Filter TFB2457-1506SMC
Order Code: TFB2457-1506SMC
Category: Band Pass Filter
Features: Rugged Shielded case Other standard and custom BPF models Small & Rigid design Economical Wide Passband Description: The TFB2457-1506SMC is a band pass filter operates from 2375MHz to 2550MHz frequency rang...
SPECIFICATION
Features:
- Rugged Shielded case
- Other standard and custom BPF models
- Small & Rigid design
- Economical
- Wide Passband
Description:
The TFB2457-1506SMC is a band pass filter operates from 2375MHz to 2550MHz frequency range. The signal output uses a SMA male connector at Input side and SMA Female connector at output side to RF test equipment. Its laboratory quality specifications will meet most engineering laboratory requirements. The same features that make the model RFB2457- 1506SMC a good choice for a lab.
Applications:
- Amateur Radio Equipment’s
- Test and measurement equipment
- Wireless Communication Equipment’s
- Wearables
- Security systems
- Harmonic Rejection
- Transceivers Communications
- Navigations
|
Electrical Speci?cations: |
|
|
Frequency Range: |
2400MHzto 2550MHz |
|
Center Frequency : |
2450 MHz |
|
Input Power: |
+27dBm (Max.) |
|
Insertion Loss : |
-3.0dB (Max) |
|
Return Loss : |
-15 dB (Min) |
|
VSWR: |
1.4.0 Max |
|
In / Out Impedance: |
50 Ohm |
|
Operating temperature: |
0 ?C to 50 ?C |
|
In / Out Connector: |
SMA (F) |
|
Mechanical Speci?cations: |
|
|
Shape: |
Cylindrical shape |
|
Weight : |
25 gm |
