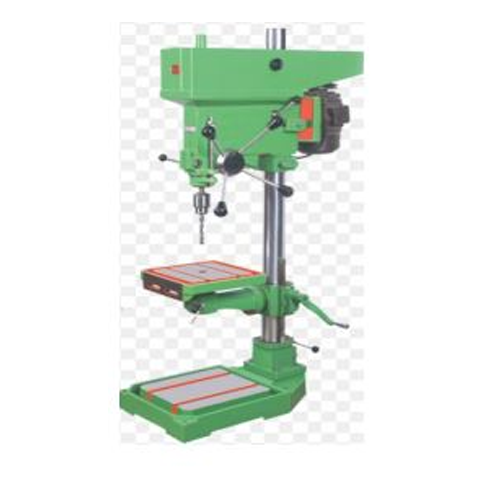

Bench Drilling Machine
SPECIFICATION
- Input Power: Minimum 1,100 W
- Chuck Capacity: Minimum 20 mm diameter; keyed drill chuck on MT4 taper spindle.
- Spindle Travel: Minimum 120 mm with adjustable depth stop and graduated depth scale.
- Spindle Taper: MT No. 4 (ISO 296)
- Speed Steps: Minimum 12 selectable speeds via belt pulley adjustment
- Speed Range: 150- 2,450 rpm (no-load); all speeds shown on speed chart on machine.
- Overall, Height: Minimum 1,730 mm
- Table Size: Minimum 420 x 420 mm; T-slots Cor vise/fixture clamping; tiltable ±45°
- Base Size: Minimum 580 x 430 mm
- Column Diameter: Minimum 90 mm
- Machine Weight: Minimum 130 kg
- Work Light: LEO work lamp, minimum 500 lumens
- Belt Guard: Interlocked belt and pulley guard; machine cannot operate with guard open
- Chuck Guard: Adjustable transparent spindle/chuck. guard; returns to safe position automatically.
- Machine Vise: Machine vise or clamp set for table (supplied as standard accessory).
