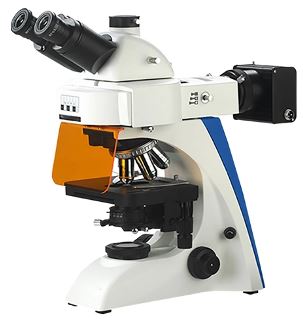

Biological Microscope

1. Application: for Tissue Culture Laboratory and used for a variety of advanced live cell imaging applications. It is capable of performing a multitude of imaging techniques, including: Longterm time-lapse imaging, Cutting-edge techniques, Routine testing and documentation.

Technical specification for Microscope:

1.  Microscope Frame:
2. - Revolving nosepiece
3. - Motorised sextuple revolving nosepiece (DIC slider attachable), simple waterproof structure
4. - Coded sextuple revolving nosepiece (DIC slider attachable), simple waterproof structure
5. - Focus: Stroke: 10 mm
6. - Focusing: Manual
7. - Light-path selection: 0:100/50:50/100:0 (Left-side port: BIport)
8. - Transmitted light illuminator:
9. - Pillar tilt mechanism (30° inclination angle, with vibration-reducing mechanism),
10. - Condenser holder (with 88 mm stroke, refocusing mechanism),
11. - Field iris diaphragm adjustable,
12. - 4 filter holders
13. - Light source: 12 V 100 W halogen bulb (pre-centred), High-colour-reproductive LED light source

OBSERVATION TUBE:

1. - Wide-field (FN 22):
2. - Wide-field tilting binocular
3. - Wide-field binocular
4. - Wide-field trinocular

STAGE

1. - Scanning stage with ultrasonic:
2. - Stage stroke: X: 76 mm x Y: 52 mm,
3. - Maximum stage movement speed: 30mm/s
4. - Mechanical stage with right handle:
5. - Stage stroke: X: 114 mm x Y: 75 mm,
6. - Stage position locking function
7. - Gliding stage:
8. - Upper circular stage 360° rotatable,
9. - 20 mm (X/Y) travel
10. - Plain stage:
11. - 232 mm (X) × 240 mm (Y) stage size,
12. - Stage insert plate exchangeable (ø110 mm)

CONDENSER:

1. - Motorised long working distance condenser:
2. - W.D. 27 mm, NA 0.55,
3. - Motorised turret with 7 position slots for optical devices (3 positions for ø30 mm and 4 positions for ø38 mm),
4. - Motorised aperture and polariser
5. - Long working distance universal condenser:
6. - NA 0.55,
7. - W.D. 27 mm
8. - 5 positions for optical devices (3 positions for ø30 mm and 2 position for ø38 mm)
9. - Long working distance relief contrast:
10. - NA 0.5,
11. - W.D. 45 mm,
12. - 4 positions for optical devices (for ø50 mm, relief contrast optical devices rotatable)
13. - Ultra long working distance:
14. - NA 0.3,
15. - W.D. 73.3 mm,
16. - 4 positions for optical devices (for ø29 mm)

LUORESCENCE ILLUMINATOR:

1. - L-shaped fluorescence illuminator:
2. - With fly-eye lens: L-shaped design with exchangeable FS module
3. - L-shaped design with exchangeable FS and AS modules
4. - Fluorescence illuminator: Straight design with field iris diaphragm

FLUORESCENCE MIRROR TURRENT:

1. - Motorised fluorescence mirror turret:
2. - Motorised turret with 8 positions,
3. - Built-in shutter
4. - Simple waterproof structure
5. - Coded fluorescence mirror turret:
6. - Coded 8-position turret,
7. - built-in shutter,
8. - simple waterproof structure
9. - Fluorescence light source:
10. - 130 W Halogen light guide illumination
11. - 100 W Hg apo lamp housing and transformer
12. - 100 W Hg lamp housing and transformer
13. - 75 W Xenon lamp housing and transformer

FILTER WHEEL / SHUTTER:

1. - Motorised fast filter wheel:
2. - High-speed mode 60 ms,
3. - Low-vibration mode 100 ms (rotation time to next hole on the wheel)
4. - Motorised fast filter wheel for emission:
5. - High-speed mode 60 ms,
6. - Low-vibration mode 100 ms (rotation time to next hole on the wheel)
7. - C-mount adapter and bayonet mount adapter are enclosed
8. - Motorised fast shutter:
9. - High-speed mode 26.2 ms,
10. - Low-vibration mode 60 ms (rotation time one way)
11. - Motorised attenuator wheel: Time to shift to another filter 300 ms (rotation time to next hole on the wheel)

Technical specification for Camera:

1. - Dimension (W×D×H) mm: 76.7 × 70.1 × 37.3 (±5mm)
2. - Image Sensor: Backside illuminated monochrome CMOS
3. - Sensor Size: 1/1.8 inch (7.41 mm × 4.98 mm)
4. - Pixel Size: 2.4 × 2.4 μm
5. - Binning: 2×2
6. - A/D Converter (Bit Depth): 10 bits
7. - Exposure Time: From 13 μs to 25 s
8. - Live Frame Rates:
9. - Up to 45 fps at 3088×2076 pixel
10. - Up to 58 fps at 2072×2072 pixel (square)
11. - Up to 60 fps at 1920×1080 pixel (Full HD 16:9)
12. - Up to 58 fps at 1544×1038 pixel (Binning 2×2)
13. - Cooling System: Passively cooled
14. - Data Transfer: USB 3.1 Gen1
15. - Imaging Platform: cellSens Entry
16. - Mount: C-mount
17. - Weight: approx. 380g

Technical specification set of computer:

1. - Monitor Size: at least 32-inch
2. - Monitor Resolution: 4K (3840x2160)
3. - Speaker: built-in
4. - CPU: 14 gen intel core i5 or higher
5. - Ram: 16 GB
6. - Storage SSD: 1 TB
7. - Graphic: Intel® UHD 730 or better
8. - OS: Windows Licences 11 Professional (64bit)
9. - Speaker: built-in
10. - Port: HDMI, USB-C
11. - Cable Include:
12. - 1 x power cable
13. - 1 x USB-C to USB-C cable
14. - 1 x DisplayPort cable – DisplayPort to DisplayPort
15. - 1 x USB cable – USB Type A to C
16. - 1 x HDMI cable

Standard Requirement:

1. - Standard and Compliance: ISO9001, ISO 14001, IEC 61010-1, IEC 61326-1 Class A, IEC 60601-1 or equivalent.
2. - Language: English language available on machine and manual.
3. - Supplier Requirement Experiences: at least 5 years.
4. - Warranty: At least 2 years on Mechanical, Electrical parts and Services.
5. - Include Installation and Training:
6.   • On-site installation performed by certified technicians.
7.   • User training covering equipment, full operation, maintenance, (minimum 1 full training session) at least 2 trainees.
8.   • Provision
