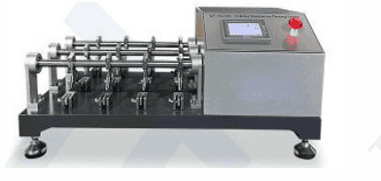

Flexing Tester Machine – 12 Station (for Leather and Similar Materials)

Description:
A precision instrument used to test the flexing endurance of leather and similar materials. This machine is designed for repetitive flexing cycles to simulate wear and assess material durability, in compliance with international testing standards.

Machine Specifications:

• Number of Test Positions (Stations): Minimum 12 sets

• Number of Cycles: 100 cycles/min ± 5 cycles/min

• Flexing Angle: 22.5° ± 0.5°

• Flexing Speed: 100 ± 5 cycles/min

• LCD Counter Range: 0 to 999,999 (adjustable)

• Sample Size: 70 ± 5 mm × 45 ± 5 mm

• Leather Upper Clamp:

  • Pivoting pair of flat plates

  • Maximum thickness: 4 mm

• Machine Dimensions (L × W × H): 950 × 600 × 500 mm

• Weight: 60 to 85 kg

Included Accessories:

• Cutting Die:

  • Inner wall: Rectangular

  • Dimensions: 70 mm ± 1 mm × 45 mm ± 1 mm (matching sample size)

• Laboratory Desiccator (DURAN®):

  • Type: Vacuum Desiccator

  • Junction Tube: NOVUS standard ground joint (NS 24/29) in lid

  • Stopcock and flat flange

  • Vacuum-tight

  • Material: DURAN® borosilicate glass

  • Volume: 0.7 – 1 liter

• Magnifier:

  • 25× magnification

• Additional Tools & Accessories:

  • Allen Key (No. 5)

  • Metal Clip: 70 mm wide

  • Mandrel: Diameter: 10 mm, Minimum length: 70 mm

  • Glass Dishes:

    • Quantity: 10

    • Minimum Diameter: 100 mm

    • Minimum Depth: 25 mm
