Technical Specifications:

• Table Size:
  560 mm x 255 mm / 22 inches x 10 inches
  The work table provides a substantial area for handling and positioning materials during the mortising operation.

• Up/Down Movement of Table:
  75 mm / 3 inches
  This allows the table to move vertically for adjusting the cutting height, offering flexibility for various material sizes.

• Cross Movement of Table:
  100 mm / 4 inches
  This feature enables lateral movement, helping to position the workpiece accurately during cutting.

• Longitudinal Movement of Table:
  305 mm / 12 inches
  Facilitates movement along the length of the table for precise adjustment and control.

• Maximum Mortise Hole Size:
  12.7 mm / 2 inches
  The maximum diameter of the mortise hole that can be achieved with this machine.

• Maximum Depth of Cut:
  140 mm / 5.2 inches
  This is the maximum cutting depth that the machine can handle, allowing it to work with thicker materials.

• Motor Power:
  2 HP / 1440 RPM
  The motor operates at 2 horsepower, offering efficient and stable operation at 1440 RPM.

• Total Power:
  2 HP
  The machine’s total power requirement is 2 horsepower, which is suitable for mortising tasks of moderate to high difficulty.

• Approximate Weight:
  260 kg
  The machine weighs 260 kilograms, ensuring stability and durability during operation.

Summary:

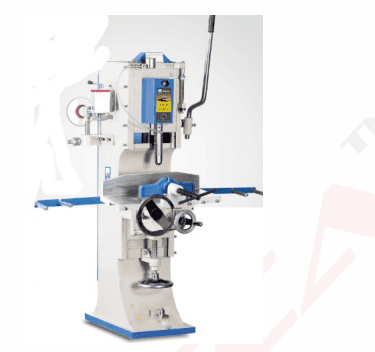

This mortising machine is designed for precision and versatility, offering various movement options for accurate material positioning. With a solid 2 HP motor, up to 140 mm depth of cut, and a max mortise hole size of 12.7 mm, it is well-suited for handling a variety of mortising tasks. The machine’s generous table size and movement capabilities ensure ease of use and flexibility when working with different materials.
