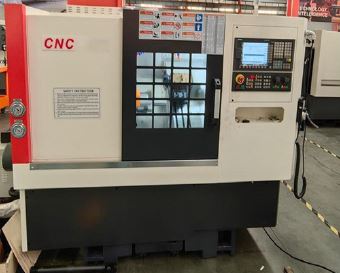

CNC lathe machine

The machine comprise of;

1. Heavily built rigid frame structure with hardened v-block guideway.
2. Operator friendly graphic display for visual part program verification.
3. hydraulic chuck with adjustable clamping force and a through-hole for holding
4. longer work pieces through the spindle.
5. Automatic oil lubrication system
6. Full enclosure splash guard wide-opening sliding door for easy access
7. Fully enclosed electronics control cabinet.
8. Powerful heat exchanger for temperature management in the electronics control cabinet.
9. Easily accessible compressed air Hand gun and coolant gun mounted on the machine
10. Tailstock with hydraulic quill featuring high clamping holding force and easy to handle
11. Electronic movement control of X and Z axes
12.  Systems operating within a power grid rated at 240 VAC/50 Hz single phase and 415 V 3-phase power supply.
13. Standard Equipment:
14. Hydraulic tailstock with foot switch
15. Hydraulic 3-jaw power chuck, 7 Inch diameter with through-hole and foot switch
16. Hydraulic unit
17. Electric turret with 8 stations
18. Coolant System
19. Auto lubrication system
20. Fully enclosed electronics cabinet
21. LED work lights
22. Operating tools
23. Drill tool holder
24. Axial tool holder
25. Radial tool holder
26. User guide

WORKING AREA

1. Turning-Ø over bed 420 mm
2. Bed width 300 mm
3. Center height 210 mm
4. Turning-Ø over support 220 mm
5. Turning length (max.) 580 mm
6. Center width 655 mm
7. Maximum workpiece
8. Weight 250 kg

TRAVELS

1. Travel X-axis 215 mm
2. Travel Z-axis 624 mm

HEADSTOCK

1. Speed range 20 1/min - 2500 1/min
2. Spindle bore 66 mm
3. Spindle bore with draw tube 48 mm

RAPID FEED

1. Rapid feed X-axis 6000 mm/min
2. Rapid feed Z-axis 8000 mm/min

TOOLING

1. Number of tool stations 8 positions
2. Shank size 20 mm

TAILSTOCK

1. Tailstock taper 4 MT
2. Tailstock quill diameter 60 mm
3. Tailstock quill stroke 120 mm

DRIVE CAPACITY

1. Motor rating main drive 7.5 kW

MEASURES AND WEIGHTS

1. Overall dimensions:(length x width x height) 2.73 m x 1.8 m x 1.78 m
2. Weight 2220 kg
