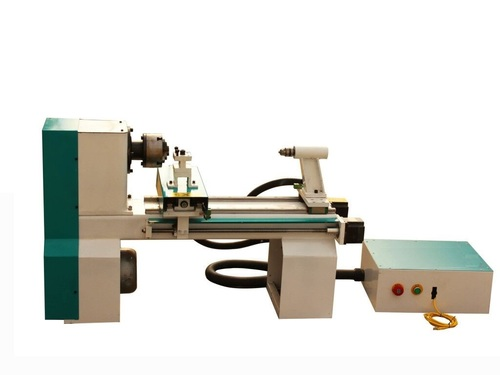

CNC Mini Lathe Machine
SPECIFICATION
Type
Compact benchtop CNC turning machine for TVET training in precision turning of small components (OD, ID. taper. threading), Servo-driven, cast-iron bed construction.
Max Swing Over Bed
Minimum 210 mm
Max Swing Over Carriage
Minimum 100 mm
Max Workpiece Length
Minimum 250 mm
Spindle Bore
Minimum 26 mm
Spindle Taper
MT No. 4 (ISO 296)
X Axis Travel
Minimum 90 mm
Z Axis Travel
Minimum 300 mm
X/Z Axis Rapid Speed
Minimum 2000 mm/min per axis
Spindle Drive
Servo motor drive system (AC or brush1ess DC). minimum 1.1 kW continuous output
X/Z Servo Torque
Minimum 2 N m per axis; closed-loop encoder feedback.
Ball Screws
Precision ball screws on all axes
Bed Materials
Cast Iron bed: hardened and precision-ground ways, minimum 50HRC
Min Setting Unit
0.001 mm
Tailstock
Diameter minimum 22mm; travel minimum 50mm: taper MT No. 2
Positioning Accuracy
±0.010 mm per ISO 230-2
Repeatability
±0.005 mm per ISO 230-2
CNC Controller
Suitable 2-axis CNC controller; USB/RS-232 connectivity; G-code compatible (ISO 6983-1)
Machine Weight
Approximately 300kg
Certificate
CE marking or equivalent; IEC 60204-1 electrical safety,
