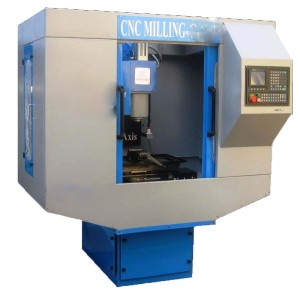

CNC Mini Milling Machine,
SPECIFICATION
Type
Compact bench-top 3-axis CNC milling machine for TVET training in CNC milling, drilling, and basic contouring. Cast iron base. Suitable for small workpieces.
Max Drilling Capacity
Minimum 20 mm diameter in steel
X Axis Travel
Minimum 280 mm.
Y Axis Travel
Minimum 190 mm
Z Axis Travel
Minimum 300 mm
T-Slot Width
12 mm
Positioning Accuracy
Maximum t0.010 mm per ISO 230-2
Repeatability
0.005 mm per ISO 230-2
Spindle Taper
MT3 or RS-bidder to state which; both acceptable
Spindle Speed Range
50 - 3,000 rpm, variable speed
Spindle Motor
Minimum 1,0 kW continuous; maximum 1.1 kW (S6)
Drive System
Precision ball screws on all 3 axes: servo/stepper drive with closed-loop
Feedback.
Table/ Base
Cast Iron Base for vibration damping
Coolant
Cutting fluid/coolant system or provision for one
CNC Controller
Reputable 3-axis CNC controller (Siemens, Fanuc, Syntec, or equivalent); G-code/M-code support (ISO 6983·1); USB Interface; English-language display.
Machine Weight
Approximately 300 kg.
