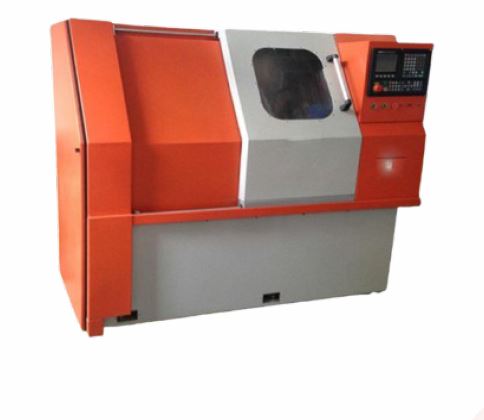

CNC Trainer Lathe Machine
Order Code: 25268654.4.6
Category: General Lab Equipment V
Lathe Machine Specifications (Mechanical) Weight of machine: 800–900 Kg Swing over Bed: 200–250 mm Swing over Cross Slide: 70–80 mm Axis Travel X Axis: 100–150 mm Z Axis: 180–270 mm Automatic ...
SPECIFICATION
Lathe Machine Specifications (Mechanical)
Weight of machine: 800–900 Kg
Swing over Bed: 200–250 mm
Swing over Cross Slide: 70–80 mm
Axis Travel
- X Axis: 100–150 mm
- Z Axis: 180–270 mm
Automatic Tool Turret: 8 Station
Chuck Size: 125 mm
Max Turning Dia/Length
- Dia 20–32 mm up to 200–225 mm
- Dia 50–75 mm up to 70–100 mm
Spindle Type: Cartridge Spindle
Max Bar Diameter: 26 mm
Spindle Power: 7.5 HP
Spindle Nose Taper: ISO 40
Spindle Speed: 200–2800 rpm
Material that can be machined: Mild Steel, Aluminum, etc.
