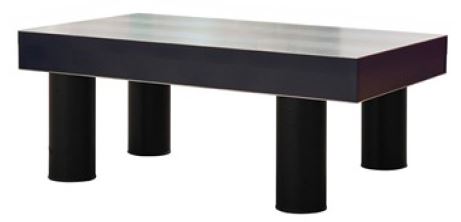

Anti-Vibration Optical Table
SPECIFICATION
Anti-Vibration Optical Table
- Length=2.2-2.4 m, Width=1.2-1.4 m and Thickness=20-21 cm
- Have 4 legs with pneumatic isolation Optical Table with active vibration isolation Fiber Optics Experiment Force Table with Super Pulley
- Vibration isolation top surface should be 400 series ferromagnetic ss top,25mm grid M6 holes, with 12-15 mm boarder
- Should be Metric type with M6 holes on the top surface
- Should have alphanumeric grid labels, trussed honeycomb core, surface flatness should be minimum 0.1 mm over 60 cm
- Should have two tuned narrowband dampers
- Damped working surface & bottom skin thickness 4-5 mm
- Should have 3 leveling valves with pressure gauge
- Isolator height 70-72 cm, and 900-1000 kg load capacity
- Horizontal and vertical isolation resonance should be 1-2 Hz
- Settling time should be 1-2 s
- Releveling accuracy should be less than 0.3 mm
- Horizontal and vertical amplification at resonance should be less than 10dB
- Should have low noise compressor with operating sound level should be less than or equal to 30dB
- Compressor maximum air pressure 100-130 psi
- Hole sealing type should be easy clean conical cup type and 15-20 mm depth
- Installed table top height should be 90-93 cm
- Detailed data sheet from manufacturer should be provided
