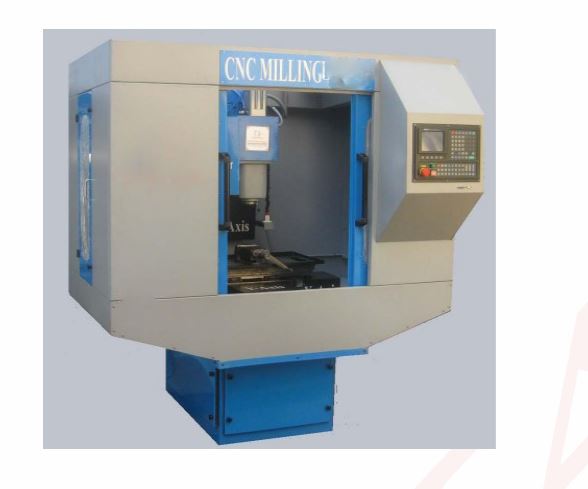

Feature/Specification

• CNC System: SIEMENS Industrial CNC Controller
• Machine Base: Close grained Graded Cast Iron rigid, robust and stress relieved structure
• Machine Size: 1200mm x 1000mm x 2000mm
• Axis Travel: Longitudinal traverse (X): 350mm• Cross traverse (Y): 250mm• Vertical traverse (Z): 300mm
• Machine Table Size: 700 x 200 mm
• Table Clamping Area: 550 x 170 mm
• T Slots Width: 12 mm
• Axis Drive: Ball screw C5 Accuracy (Imported)
• Machine Slide Drive: Imported Linear Guide ways driven for smoother drive
• Spindle Inside Taper: ISO 30
• Spindle Material: Alloy Steel
• Spindle Quill: Chrome plated, precision ground
• Spindle Power: 2.0 HP with Variable Frequency Drive
• Distance: Spindle Nose to Table top: 250mm, Spindle Nose to Column: 250mm
• Spindle Speed: 200 – 2800 rpm
• Spindle Operation: 100% Close Loop with Controller
• Material that can be Machined: Mild Steel, Cast Iron, Aluminum, etc.
• Maximum Depth of Cut: 1.5 mm on steel
• Resolution of Axis: 1 Micron
• Lubrication System: Fully Automatic Lubrication
• Coolant Supply: Recirculating supply
• Number of Tools: One
• Axis Motors: Servo Motors
• DNC Communication: Possible
• CAD/CAM Compatibility: Possible
• Hand Wheel Operation: MPG provided for manual operation
• Coordinate System: Absolute and Incremental
• Axis Feedback: 100% Close Loop
• Option Skip Function: Available
• Optional Stop and Feed-Hold Function: Available
• Manual Data Input: Available
• Online: Available
• Acceleration/Deceleration: Available
• Mirror Effect Cutting: Available
• Tool Radius Compensation: Available
• Rectangular Grooving: Available
• Circular Grooving: Available
• Circular Drill Canned Cycle: Available
• Angular Drill Canned Cycle: Available
• Arc Drill Canned Cycle: Available
• Boring Canned Cycle: Available
• Soft Over Travel Limits: Available
• Feed Rate Commands: Either mm/min or mm/rev both possible
• Isolation Transformer for Safety: Optional
• Rapid Feedrate: 5–15 mtr/min
• Feedback Resolution of Axis Motor: 10,000 pulses per revolution
• Feedback of Spindle Motor: 4,096 pulses per revolution
• Interpolation of Axis: All three axis at any time
• Automatic Tool Changer: 8 Stations
