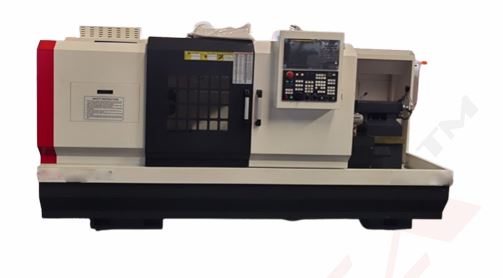

COMPUTERIZED NUMERICAL CONTROL (CNC) LATHE MACHINE
Order Code: 25269166.5
Category: General Lab Equipment V
Technical Specifications Parameter | Unit | Specification Maximum Swing Over Bed | mm | Ø500 Maximum Swing Over Slide | mm | Ø250 Maximum Turning Diameter | mm | 500 Maximum Workpiece Length | mm | 1500 Maximu...
SPECIFICATION
Technical Specifications
Parameter | Unit | Specification
- Maximum Swing Over Bed | mm | Ø500
- Maximum Swing Over Slide | mm | Ø250
- Maximum Turning Diameter | mm | 500
- Maximum Workpiece Length | mm | 1500
- Maximum Turning Length | mm | 1350
- Spindle Nose Type | – | A2-8
- Spindle Bore | mm | 82
- Spindle Taper | – | Metric 90
- Spindle Speed | r/min | 150–1800 / 150–800
- Spindle Motor Power | kW | 7.5 / 11
- Chuck Size | mm | 320
- X-Axis Travel | mm | 280
- Z-Axis Travel | mm | 1500
- X / Z Rapid Feed Traverse | m/min | 6 / 8
- X-Axis Servo Motor Torque | N·m | 5
- Z-Axis Servo Motor Torque | N·m | 7.5
- Capacity of Tool Post | – | 4
- Tool Shank Size | mm | 25 × 25
- Tailstock Quill Taper | – | MT-5
- Tailstock Quill Diameter | mm | 75
- Tailstock Quill Travel | mm | 150
- Total Rated Power | kW | 12
- Total Rated Current | A | 26
- Machine Weight | kg | 3100
- Machine Dimensions (L × W × H) | mm | 3250 × 1700 × 1820
STANDARD ACCESSORIES :
- 7.5kw Servo Main Motor
- 4 Station Electrical Turret
- 10" Manual Chuck
- Bed Width 400mm
- Spindle Bore
