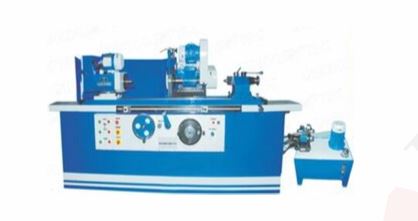

Cylindrical grinder
Order Code: 25268467.45
Category: General Lab Equipment V
TECHNICAL SPECIFICATIONS: Center Height 150mm Distance between Centers 600mm Table Swivel Degree +7 Deg. / - 5 Deg. Table Speed Infinitely Variable 0.1 – 2.5m/min. Hydraulic Power Pack...
SPECIFICATION
TECHNICAL SPECIFICATIONS:
- Center Height 150mm
- Distance between Centers 600mm
- Table Swivel Degree +7 Deg. / - 5 Deg.
- Table Speed Infinitely Variable 0.1 – 2.5m/min.
- Hydraulic Power Pack Motor 1HP -1440rpm
- Grinding Wheel (d x w x b) 350 x 40 x 127mm
- Grinding Wheel Speed 1700rpm
- In feed of Hand Wheel 0.01mm/Div.
- Grinding Head Motor 3HP-1440rpm
- Rapid Approach 40mm
- Range of Work Head Speed 65-140-205-300rpm
- Work Head Spindle Taper MT-4
- Work Head Motor Power 0.5HP-960rpm
- Tail Stock Spindle Taper MT- 4
- Tail Stock Quill Stroke 40mm
- Coolant Tank 50 Liter
- Coolant Pump Motor 0.15HP
- Approx. Machine Weight 2100Kg.
STANDARD ACCESSORIES:
- Grinding Wheel with Flange
- Wheel Puller
- Dead Center MT-4
- Coolant Systems
- Dressing Attachment
- Manual Lubrication Pump
- Tool Box (Spanners)
OPTIONAL ACCESSORIES: (DOESN'T COME WITH THE MACHINE)
- Internal Grinding Attachment (Ø60mmx250mmx16000rpm)
- Three Point Steady Rest
- Two Point Steady Rest
- 6” x 3 Jaws True Chuck with Chuck Plate
- Additional Wheel Flange
- Wheel Balancing Stand
- Wheel balancing Arbor
- Magnetic Coolant Separator
- Automatic Lubrication Pump
- Machine Lamp
- VFD Drive for Work Head
