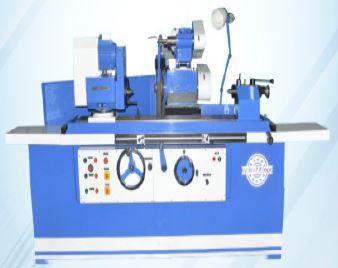

CYLINDRICAL GRINDING MACHINE.
SPECIFICATION
CYLINDRICAL GRINDING MACHINE
Description
- Grinding diameters with steady-rest (O.D.) 8-60 mm
- Grinding diameters without steady rest (O.D.) 8-200 mm
- Grinding diameters with steady-rest (LD.) 35-100 mm
- Grinding diameters without steady-rest (1.D.) 25-100 mm
- Max workpiece weight 150 kg
- Grinding length (O.D./I.D.) 800/125 mm
- Center height 135-180 mm
- Distance between centers 1000 mm
- External wheel size
- ???. ?400×50×4203 mm
- Min. $280×50×4203 mm
- Max peripheral speed of grinding wheel - 38 m/s
- Internal grinding wheel size Max. Φ50×40×Φ16 mm
- Min . Φ45×35×Φ10 mm
- Internal wheel spindle speed 1670 r/min
- Wheelhead rapid travel 25 mm
- Headstock & tailstock center MT4
- Swivel range of worktable –3° ~ +6°
- Worktable speed 0.1–4 m/min
- Max. table travel 950 mm
- Spindle speed of headstock 50Hz: 25–380 stepless r/min
- 60Hz: 30–456 stepless r/min
- Machine motor power 5.625 kW
- Overall dimensions (L × W × H) 3000×1600×1000 mm
- Machine weight 3000 kg
Main Features
- High cutting precision, strong rigidity, and high grinding efficiency. Ideal for cylindrical and conical workpieces.
- All moving components (workpiece, outer and inner grinding wheels, oil and cooling pumps) are driven by independent motors.
- Table longitudinal movement supports hydraulic stepless speed adjustment and manual control. Lubrication is performed via throttling discharge.
- All motion sections are interlocked via electrical, hydraulic, and mechanical safety mechanisms.
