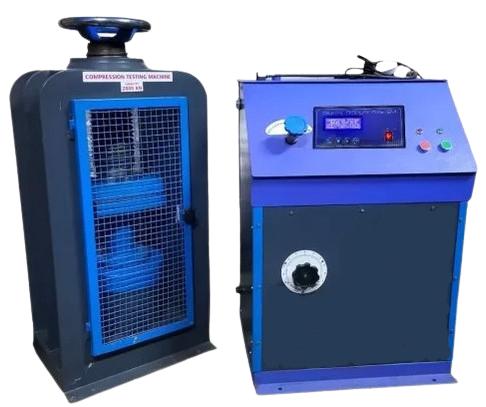

Digital Cube Testing Machine 2000 kN with Flexure Testing Attachment up to 100 kN Load Calibrated (Third Point Loading)
Order Code: 26279682.1
Category: General Lab Equipment V
Digital Cube Testing Machine 2000 kN with Flexure Testing Attachment up to 100 kN Load Calibrated (Third Point Loading)
SPECIFICATION
Digital Cube Testing Machine 2000 kN with Flexure Testing Attachment up to 100 kN Load Calibrated (Third Point Loading)
- Reference Standard: Comply all requirements of IS: 14858
- Class of machine range as per IS:1828: Class 1
- Capacity: 2000 kN
- Machine Type: Digital Electrically Operated
Compression Testing Frame:
- Clearance between platens: 370 mm
- Clearance between side plates: 340 mm
- Platen size: 222.0 mm
- Ram Dia.: 222.2 mm
- Piston Stroke: 50 mm
Flexure Testing Load Frame:
- Centre Distance Between Supporting Rollers For Beam Size 150x150x700 mm: 600 mm
- For Beam Size 100x100x500 mm: 400 mm
- Type of Control: Manual Control with Lever
Additional Features:
- Digital models with pace rate indicators
- Self-aligning hardened platen assembly
- Calibrated in kN against certified Proving Rings, traceable to NPL / NCCBM
- Suitable for testing cubes, cylinders & blocks of various sizes
- Using special platens, bricks can also be tested
- Calibration process accredited by NABL (National Accreditation Board for Laboratories)
- Operator's safety features like metal door with a Perspex window and overload tripping device are provided in all models
