Digital Inductive Pick-up Transducer Trainer Kit
Order Code: 25268918.11
Category: General Lab Equipment V

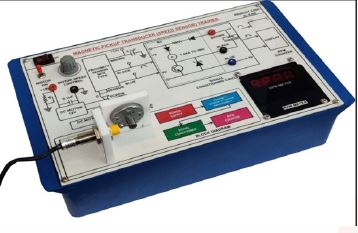

Digital Inductive Pick-up Transducer Trainer Kit
SPECIFICATION
Digital Inductive Pick-up Transducer Trainer Kit
Application/Test facility:
- Standalone inductive transducer speed measurement trainer with RPM display, motor speed control, and separate motor unit, housed in a powder-coated cabinet with acrylic front panel.
Product Features:
Motor Unit:
- Motor: Specially designed bi-directional, permanent magnet armature controlled DC motor.
- Power: 6W or equivalent
- Speed: 3500 R.P.M Max.
- Voltage: 12V DC.
- Torque: 0.3 Kg. cm2
- Mounting: Motor mounted with wheel and Inductive transducer.
- Connector: Special connector with wires to connect motor unit to measuring unit.
Main Measuring Unit:
- Parameter Measured: Speed in R.P.M.
- Speed Control: Built - in solid state speed controller voltage based.
- System Range: 5000 RPM Max.
- Instrumentation: Pulse generator, counter, decoder, driver.
- Readout: 4-digit digital readout 0.5” Red.
Controls:
- Speed control
- Mains ON / OFF
- Connector: Facility for connecting the motor unit.
- Test Points: Multicolored test points are provided at various stages in the circuit to observe waveforms and voltages.
- Indicator: Mains ON/OFF.
- Power Requirements: 230V, ±10% AC, 50Hz 1 phase.
- Panel Size: 10” x 13”.
Accessories/Spares:
- Motor Unit with Inductive Pickup Transducer and Target Wheel/Disc
- Connecting Cables, Power Adapter, and Seven-Segment Display Module
