SPECIFICATION

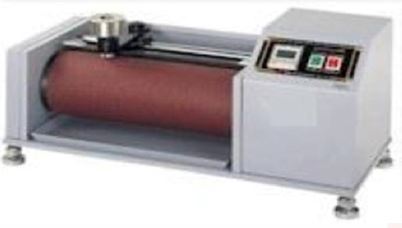

DIN ABRASION TESTER
- Sample load 2.5N, 5N,10N Stroke 40m or 20m
- Roller speed 40 ± 1r/min
- Roller length 460mm
- Testing angle : 15° (adjustable) Grinding Wheel: # 40 Diameter of grind Wheel : 150mm ± 0.2mm
- Dimension : WXDXH 65X45X45 CM With automatic steel cleaning brush Wheel
- Counter : LCD displayer 6 digit, auto – brake device
- Power consumption :400w
- Consumable; 30 pcs of Abrasive cloth made with aluminum oxide of grain size 60, at least 400mm wide, 473 mm long and 1mm average thickness, the surface shall cause a mass loss between 180mg and 220mg for an abrasion distance of 40m.
- 100 pcs of Standard Rubber- in accordance of ISO4649:1985,
- Dimension: 183x183 mm, Thickness minimum 8mm
- Accessories; Cutting die /hollow drill/-Cylindrical in shape, of diameter 16mm ± 0.2mm, with a minimum height of 6mm, Analytical Balance - Accuracy ±1mg, capacity 1kg
