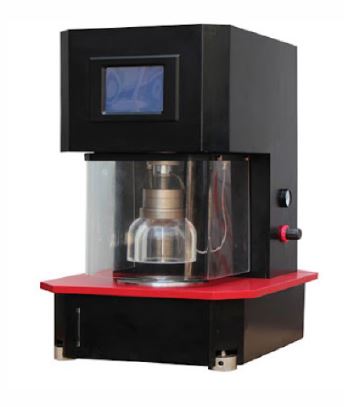

Fabric Bursting Strength Tester
Order Code: 25268654.2.21
Category: General Lab Equipment V
Specifications Capacity: 0 to 6 MPa Minimum Division Value: 0.001 MPa Test Area Options: 7.3 cm² (<D30.5 mm) 10 cm² (<D35.7 mm) 50 cm² (<D79.8 mm) 100 cm² (<D112.8 mm) Thickness of Rubber ...
SPECIFICATION
Specifications
- Capacity: 0 to 6 MPa
- Minimum Division Value: 0.001 MPa
Test Area Options:
- 7.3 cm² (<D30.5 mm)
- 10 cm² (<D35.7 mm)
- 50 cm² (<D79.8 mm)
- 100 cm² (<D112.8 mm)
Thickness of Rubber Diaphragm: ≤ 2 mm
Pressure Speed: 100 ml/min to 500 ml/min
Accuracy: ±1 mm, when the height at burst is up to 70 mm
Testing Units:
- kPa
- kgf/cm²
- atm
- mmHg
- lb/in² (free shift)
Output:
- Printer
- Display output
- Can be connected to a computer
Dimension: 550 × 450 × 700 mm (L × W × H)
Instrument Weight: Approx. 100 kg
Accessories
- Test sets: Different sizes for various fabric types (7.3 cm², 10 cm², 50 cm², 100 cm²)
- Rubber Diaphragms
- Calibration Tools
- English operation software
- Cable connects with PC
