Fatigue Testing Machine.

Order Code: 25269623.3

Category: General Lab Equipment V

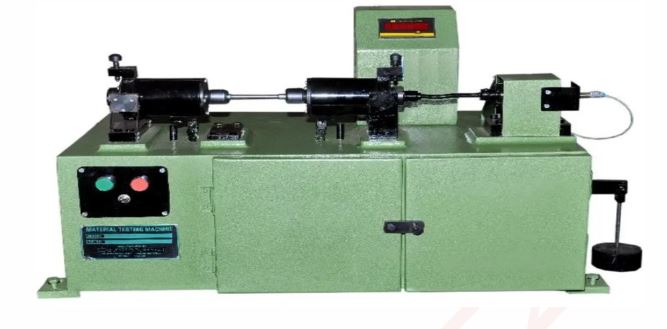

Fatigue Testing Machine



SPECIFICATION

Key Features:

  • Maximum Load / Bending Moment: 200 kg-cm (approx. ±20 Nm)
  • Adjustable Load Range: 5 – 40 kg
  • Control Mode: Bending moment / Load control
  • Operating Speed: ~4200 RPM (70 Hz)
  • Measurement Accuracy: ±1% of applied moment
  • Digital revolution counter (8-digit) for cycle tracking
  • Suitable for fatigue testing of standard specimens

Technical Specifications:

Specimen Details:

  • Gripping Diameter: ~12 mm
  • Typical Test Diameter: 8 mm
  • Specimen Length: ~225 mm

Drive System:

  • Motor: 3 Phase, ~0.5 HP, ~2800 RPM
  • Power Supply: 3 Phase, 440V AC, 50 Hz

Measurement & Control:

  • Control Mode: Bending Moment / Load Control
  • Accuracy: ±1% of applied moment
  • Counter: Digital Revolution Counter (8-digit)

Load Capacity:

  • Maximum Bending Moment: 200 kg-cm (approx. ±20 Nm)
  • Load Range: 5 – 40 kg (adjustable)

Dimensions & Weight:

  • Overall Size: approx. 1000 mm (L) × 500 mm (W) × 600 mm (H)
  • Weight: approx. 120 kg
  • Design: Compact table-top model

Standard Features / Included Components:

  • Rigid load frame
  • Actuator
  • Load cell
  • Extensometers / displacement sensors
  • Grips / fixtures
  • Control system with software
  • Standard test specimens: 20 numbers (as supplied, no changes)
