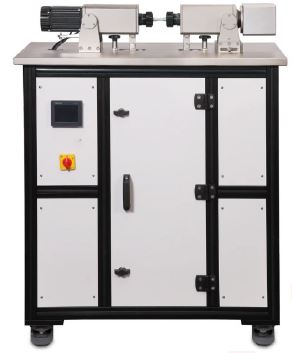

Four Point Rotating Bending Fatigue Testing machine

Order Code: 25268834.2

Category: General Lab Equipment V

Four Point Rotating Bending Fatigue Testing machine



SPECIFICATION

Four Point Rotating Bending Fatigue Testing machine

Loading Type

  • Rotating bending (fully reversed, R = –1) Number of Load Points
  • 4-point configuration: 2 supports + 2 loading arms Maximum Bending Moment
  • 10 Nm to 100 Nm

Speed Range

  • 500 – 10,000 RPM Drive System
  • High-performance AC servo motor or variable-speed motor

Load Application

  • Dead weights/servo-controlled actuator

Specimen Size Range

  • Diameter: 6 – 12 mm
  • Gauge length: 30 mm typical

Fatigue Life Range

  • 10? to 10¹? cycles

Cycle Counter

  • Digital/Programmable with auto-stop function

Fracture Detection

  • Automatic stop on specimen failure (integrated crack detection switch)

Cooling System

  • Optional fan or air jet for high-speed tests

Machine Frame

  • Heavy-duty steel or cast aluminum enclosure for stability and low vibration

Software Integration

  • PC-based data acquisition and analysis
