Hardness testing machine
Order Code: 25268467.13
Category: General Lab Equipment V
TECHNICAL SPECIFICATIONS: Hardness scale -HRA, HRB, HRC, HRD, HRF, HRG Preliminary test force-98N (10kg) Test force-588N (60kg), 980N (100kg), 1471N (150kg) Display-analogue Stage elevation-manual Load co...
SPECIFICATION
TECHNICAL SPECIFICATIONS:
Hardness scale -HRA, HRB, HRC, HRD, HRF, HRG
Preliminary test force-98N (10kg)
Test force-588N (60kg), 980N (100kg), 1471N (150kg)
Display-analogue
Stage elevation-manual
Load control-manual
Min. reading-0.5HR
Max. workpiece height-170mm
Max. workpiece depth -135mm (from the center of indenter)
Dimension-466×238×630mm
Weight-70kg

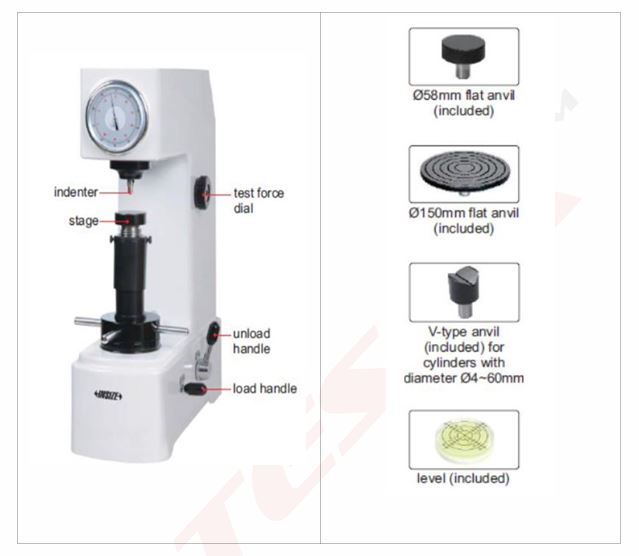

STANDARD DELIVERY
Main unit - 1 pc
Ø58mm flat anvil - 1 pc
Ø150mm flat anvil -1 pc
V-type anvil - 1 pc
Diamond indenter - 1 pc
Ø1.5875mm steel ball indenter - 1 pc
Ø1.5875mm steel ball - 5 pcs
Level - 1 pc
Hardness test block HRA80-88 - 1 pc
Hardness test block HRB85-100 - 1 pc
Hardness test block HRC20-30 - 1 pc
Hardness test block HRC35-55 - 1 pc
Hardness test block HRC60-70 Anti-dust cover - 1 pc
