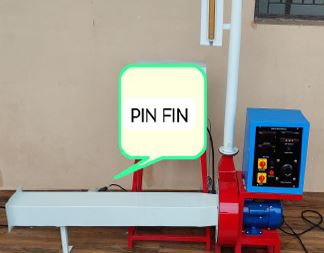

Heat Transfer through a Pin-Fin apparatus
SPECIFICATION
Heat Transfer through a Pin-Fin apparatus
- Test Table size: 780 mm (L)×560 mm (II)x 750 mm (H).
- Back-side wall size: 78 cm (length)×39cm (height).
- Duct Cross Section: H H 100 mm 150 mm.
- Duct length: upto blower centre 615 mm.
- Blower Unit (with appropriate head and capacity) including switch.
- Electrical heating unit: with 2 kW capacity.
- Cylindrical Brass fin: diameter d conductivity=111W/m.K. 12 mm; Fin length L 150 mm (minimum), thermal
- Delivery Pipe dia D. 40 mm
- Orifice Diameter D 20 mm. Orifice Coefficient C = 0.61
- Six (6) nos. Iron-Constantan Thermocouples. Five thermocouples are positioned @ 30 mm over the fin and one is free for measuring ambient temperature.
- Six (6) nos. Digital temperature display for the temperatures.
- Volt meter. Ammeter with Digital display unit.
- Dimmerstat (to control voltage input to the heater).
- U-tube Manometer (water based)
- Power supply system.
- Test section (with temperature resistant glass) 102 mm² size.
- Duct inlet section 163 mm (1) 215 mm (11).
- Insulation (as required). Refer Fig. 1 for the schematic arrangement of the test setup.
