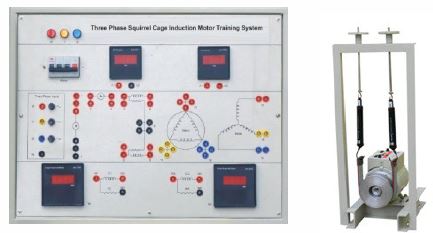

Induction motor Study panel
SPECIFICATION
Induction motor Study panel
- 2 Pole MCB of 230V, 5A
- l Phase Power Indication with RED Indicator
- Inbuilt Contactor 230V,50Hz/11 VA Coil
- Emergency Stop to Emergency Break
- Voltmeter (AC)
- Ammeter (AC)
- DOL Starter with Connections Brought Out
- Schematic Diagram for Motor with Test Points
- Connections are brought out for Reversing the speed of Motor by main and Auxiliary winding
- 1 phase output taken out from motor
- Functional Requirement of the Kit/Setup:
- To study characteristics of a 3-phase induction motor.
- To measure torque-speed characteristics.
