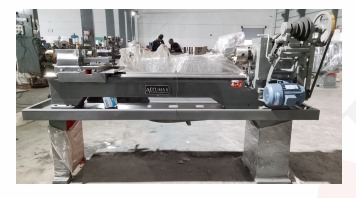

Light Duty Lathe Machine
Order Code: 25268595.20
Category: General Lab Equipment V
Capacity Height of center: 165 mm Swing over bed: 325 mm Swing over cross slide: 180 mm Swing in gap: 500 mm Bed Bed type: 2V & 2 Flat Bed width: 238 mm to 300 mm Length of gap in ...
SPECIFICATION
Capacity
-
Height of center: 165 mm
-
Swing over bed: 325 mm
-
Swing over cross slide: 180 mm
-
Swing in gap: 500 mm
Bed
-
Bed type: 2V & 2 Flat
-
Bed width: 238 mm to 300 mm
-
Length of gap in bed: 110 mm
Main Spindle
-
Spindle bore: 38 mm to 52 mm
-
Spindle nose thread: 8 TPI, 60 mm
-
Taper bore in spindle sleeve: MT-3
-
Number of spindle speeds: 8 to 12
-
Speed range: 35 – 2000 RPM
Tailstock
-
Spindle diameter: 38.1 mm
-
Taper bore in spindle: MT-3
-
Spindle travel: 115 mm
Compound Slide
-
Travel of compound slide: 120 mm
-
Tool shank section: 20 x 20 mm to 25 x 25 mm
Thread / Feed Range
-
Lead screw diameter & pitch: 25.4 mm x 4 TPI
-
Metric: 0.5 to 8 mm
-
Inch: 4 to 48 TPI
Electrical
-
Main motor: 1 HP / 440 V
Other Key Specs
-
Length of bed: 1370 mm to 1830 mm (4.5 to 6 feet)
-
Weight: 400 kg to 450 kg
