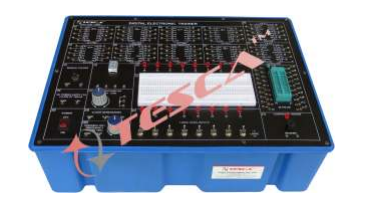

Logic circuit test simulator

Order Code: 20214361.2.15

Category: General Lab Equipment II

4 zero insertion brackets with 2 mm connections



SPECIFICATION


  • 2 x 16-pin ZIF holders
  • 1 ZIF support 28 pins
  • 1 holder 40 pins
  • 2 7-segment displays with decoder,
  • 12 Switches 0 and 1,
  • 2 anti-rebound plungers
  • 1 programmable clock from 0.1 Hz to 10 KHz
  • 12 display LEDs interfaced by transistors,
  • 2 adapters 2 mm / BNC for connection to external measuring devices,
  • 1 Power supply 5V DC with short-circuit protection (input 7 to 12V AC/DC). (sample required)
