Machining Practice Equipment
SPECIFICATION

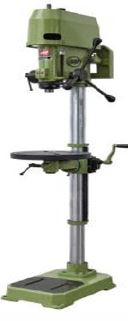

Machining Practice Equipment
- The user shall be able to easily change speeds using a V-belt
- The rotation speed shall be adjustable in 4 steps, ranging from 500 to 2,800 rpm A depth gauge ring shall be provided to set drilling depth quickly and accurately
- The equipment shall be suitable for various operations such as reaming, boring, counterboring, and countersinking in addition to drilling
- It shall be adaptable to AC 220V or 380V depending on the user environment The vise shall have an anti-slip cross-groove design for stable clamping
- It shall allow free operation with 360-degree rotation
- The steel plate press shall be made of high-strength, durable high-carbon steel
- Drilling Capacity (Steel): Ø3–Ø11 mm or more
- Drilling Capacity (Casting): Ø3–Ø13 mm or more
- Drill Stroke: 80 mm or more
- Max Distance from Spindle Nose to Table: 350 mm or more
- Max Distance from Spindle Nose to Base: 570 mm or more
- Table Size (Round): 270 mm or more
- Spindle Speeds: 500, 900, 1,600, 2,800 rpm (4 steps)
- Motor: 0.4 kW, 4P
- Base Size: 460 × 270 mm or more
- Overall Height: 1,100 mm or less
- Weight: 80 kg or less
- Total Length: 320 mm or more
- Total Height: 170 mm or more
- Clamp Length: 150 mm or more
- Max Jaw Width: 130 mm or more
- Worktable Size: 85 × 85 mm or more
- Cobalt Drill Bit (1.0–10 mm, 0.5 mm increments, total 19 pcs/Set): 1 Set
