ASTM D6927, ASTM D1559

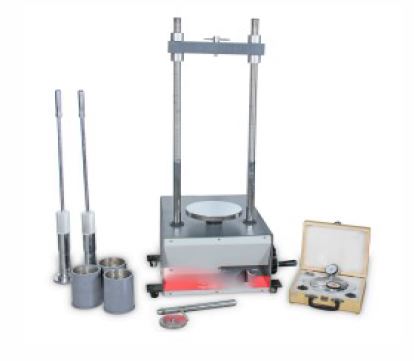

Marshal Stability Test Apparatus is Supplied with Following Parts & Accessories

• Three specimen moulds, cylindrical 4" diameter
• Three base plates
• Three collars 4.1/8" diameter
• Two compaction hammers, 4.5 kg weight and 47.7 cm drop
• One specimen extractor plate – 4" (Frame type sample extractor available at extracost)
• One compaction pedestal complete with specimen holder – 4"
• One breaking head assembly, complete with gauge disc and flow meter pedestal – 4"
• Loading transfer bar for 4" & 6"
• Three specimen moulds, cylindrical 6" dia
• Three base plates
• Three collars 6.1/8" dia
• Two compaction hammers, 10.2 kg weight and 47.7 cm drop
• One specimen extractor plate – 6" (Frame type sample extractor available at extra cost)
• One compaction pedestal complete with specimen holder – 6"
• One breaking head assembly, complete with gauge disc and flow-meter pedestal – 6"
• 100 KN capacity loading unit, motorized with uniform vertical movement of 5.08 cm/min. Suitable for operation on 230 volts AC supply. With limit switch to restrict over travel
• Suitable for operation on 230 Volts, 50 Hz, AC supply. With limit switch to restrict over travel
• One proving ring, 5000 kg (50 KN) capacity, fitted with calibration report
• One dial gauge, 0.01 mm × 25 mm travel

Essential Instruments Available at Extra Cost

• Filter paper – Pack of 100 circles
• Electronic weighing balance
• Automatic Marshal Mould Compactor with digital counter
• Constant temperature water bath with digital temperature display
• Sample extractor – Hydraulic or mechanical
