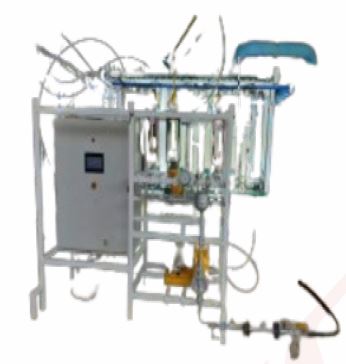

Mixed Flow Reactor

Order Code: 26279647.1

Mixed Flow Reactor

SPECIFICATION

Mixed Flow Reactor

Framework: AISI 304 stainless steel with castors
Feeding Tanks: 2 tanks, AISI 304 stainless steel, 10 L capacity each
Product Collection Tank: AISI 316 stainless steel, 20 L capacity
Metering Pumps: 2 pumps, AISI 316 stainless steel, flow rate 0–8.4 L/h
Reactor: Borosilicate glass reactor, 3 L capacity with 1.0 kW electric heater
Stirrer: Mechanical seal lubricated with silicone oil, speed 0–400 rpm
RPM Indicator: Electronic board-type indicator
Distillation Column: Borosilicate glass, DN25
Overhead Condenser: AISI 304 stainless steel
Reagent Tanks: Borosilicate glass, 1 L capacity
Distillate Tanks: 2 borosilicate glass tanks, 2 L capacity each
Temperature Sensors: 2 Pt-100 thermo-resistances with AISI 316 sheath
Temperature Indicators: 2 electronic indicators
Conductivity Meter: With automatic temperature compensation
Vacuum Circuit: With check valve for vacuum pump connection
Vacuum Gauge: AISI 304 stainless steel, range 0 to –1 bar
Piping & Valves: AISI 304 / AISI 316 stainless steel
Switchboard: IP55 with EC conformity, plant synoptic and ELCB
PID Controller: Microprocessor digital PID controller with serial card
Software: Windows-based supervision software with real-time and historical trend
Power Supply: 230 V, 50 Hz, single phase, 1.5 kVA
Dimensions: 1800 × 600 × 1850 mm
Weight: 170 kg
Documentation: Theoretical-Experimental Handbook
