MULTI-POINT ELECTRONIC INJECTION SYSTEM - MPI (on stand with wheels) electrical
Order Code: 25269440.3
Category: General Lab Equipment V
MULTI-POINT ELECTRONIC INJECTION SYSTEM - MPI (on stand with wheels) electrical
SPECIFICATION
MULTI-POINT ELECTRONIC INJECTION SYSTEM - MPI (on stand with wheels) electrical

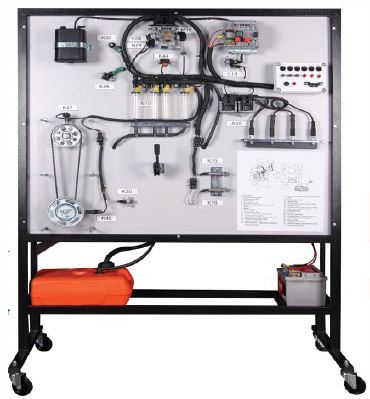

- The panel shows the functioning of an electronic injection system. It is possible to regulate the rpm
- from 0 to 2000 rpm by means of a pedal. It can simulate the air pressure sensor in the collector and the
- water temperature. It is possible to generate sensors and actuators faults disconnecting the relevant
- EOBD connections interface (standard with K line and 7 pins).
Main technical specifications:
- Fuel tank
- Electric fuel pump (N40)
- Multifunction valve
- Safety valve
- Fuel delivery pipe
- Electronic injection/ignition control unit
- (M10)
- Battery
- Ignition switch
- Inertia switch (I50)
- Engine compartment junction unit
- Climate control system
- Fuel vapour cut out solenoid valve (L10)
- Injection timing sensor (K47)
- Activated carbon filter
- Body Computer (diagnostic socket and Fiat CODE signal)
- Temperature/absolute pressure sensor (K44)
- Rpm sensor (K46)
- Spark plugs
- Coolant temperature sensor (K45)
- Injectors (N70)
- Throttle valve position sensor (K56)
- Idle speed actuator (N74)
- Fuel supply rail
- Air filter
- Ignition coils (A30)
- Lambda sensor (upstream) (K15)
- System failure warning light
- Rev. counter
- Catalytic converter
- Lambda sensor (downstream) (K16)
- Approx. weight and dim.:Cm 140x80x200h
- Net Weight: kg 96
- Gross Weight: kg 175
