Orifice And Jet Flow Apparatus

Order Code: 25268988.2

Orifice And Jet Flow Apparatus

SPECIFICATION

Orifice And Jet Flow Apparatus

General Description:

This equipment allows determination of coefficient of velocity and coefficient of discharge under various constant heads for two different orifice diameters. Comparison of jet trajectory with that by theory of mechanics can also be made. The equipment is to be used with Hydraulics Bench (separately supplied) for a water supply and flow measurement.

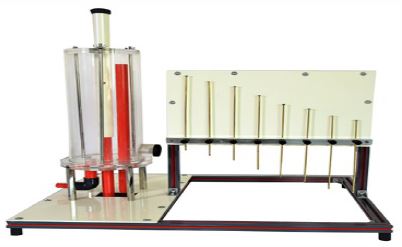

The equipment consists of a removable clear acrylic cylinder with sharp edge orifice installed at the lower inside wall of the cylinder. An adjustable overflow allows various constant heads for the test and trajectory of the jet is indicated by probes on the jet path. Heights of the probes are indicated by scales. The apparatus rests on adjustable footings and a level gauge is provided
Instruction manual is also included.

Experiment Capabilities:

Comparison of the actual and theoretical outlet velocity
Calculation of discharge coefficient
Determination of the contraction and velocity coefficients
Determination of discharge characteristics (jet trajectory) for an orifice mounted in the side of a vertical tank and comparison with simple theory

Technical Data:
