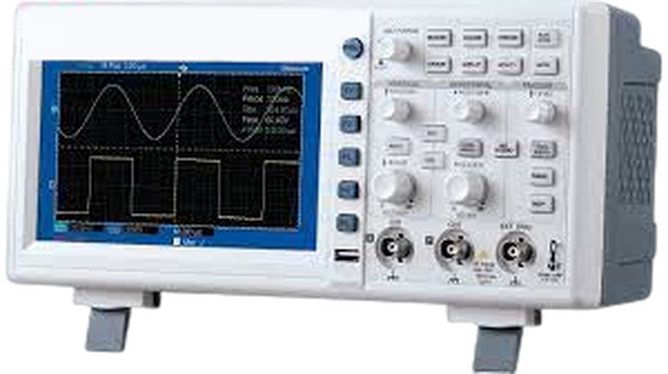

Oscilloscope Dual Trace Digital
Order Code: 22235793.6
Category: General Lab Equipment II
Bandwidth: DC - 100MHz Channels: 2 + Ext Rise Time: 3.5ns Bandwidth Limit: 20MHz 10M maximum memory depth for each channel 7 inch LCD display Vertical Sensitivity Resolution: 8 bit : 1mV-10V/div Input Coupling: AC, DC, GND DC Gain ...
SPECIFICATION
- Bandwidth: DC - 100MHz
- Channels: 2 + Ext
- Rise Time: 3.5ns
- Bandwidth Limit: 20MHz
- 10M maximum memory depth for each channel
- 7 inch LCD display
- Vertical Sensitivity Resolution: 8 bit : 1mV-10V/div
- Input Coupling: AC, DC, GND
- DC Gain Accuracy: ±3%
- Source: CH1, CH2, Line
- Trigger Mode: Auto (supports Roll Mode for 100ms/div and slower), Normal, Single Sequence
- Trigger Type: Edge, Pulse Width, Video, Pulse Runt, Rise & Fall, Timeout, Alternate, Event-Delay(1-65535 events), Time-Delay(Duration, 4nS-10S) m
- Hold off range: 4ns to 10s n. Coupling: AC, DC, LF rej, Hf rej., Noise rej
- Sensitivity: DC - 100MHz Approx. 100mV
- Input impedance: 1M? ±3%-16pF
- Time base Range: 5ns/div - 100s/div (1-2-5 increments)
- Pre-trigger: 10 div maximum
- Post-trigger: 2,000,000 div maximum
- Acquisition Mode: Normal, Average, Peak Detect, Single
- Save Setup: 20 sets
- Save Waveform: 24 sets
- Waveform Display: Dots, vectors, variable persistence (16ms-4s), infinite persistence
- Display: 7 inch TFT WVGA color display
- Display mode: YT, XY
- Power source: 220V AC, 50Hz, 1 Phase
- Standard accessories with printed operation manual
- Model, Brand and country of Manufacture: To be mentioned by the bidder
- Manufacturers Authorization Letter with contact details, website address and Manufacturer catalog should be submitted
- ISO & CE or EU standard Certificate should be submitted Warranty: 2 (Two) year with services
