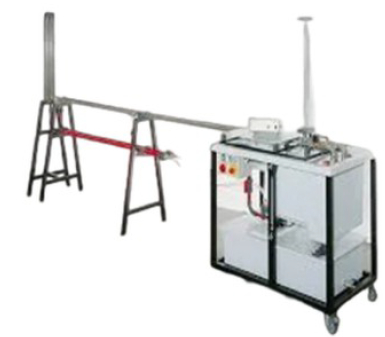

Functioning of a surge chamber

Pipe section with ball valve and surge chamber

Surge chamber designed as transparent PMMA tank

Pressure sensor behind the water chamber for measuring the pressure wave

Pipe section with solenoid valve and two pressure sensors for measuring water hammer

Volumetric flow measurement via measuring tank of the supply unit

length: 5875mm, Ø, inner: 26mm

Ball valve

Height: 825mm

Ø, inner: 50mm

Pipe section for water hammer

- length: 5875mm, Ø, inner: 26mm

- distance between sensors: 3000mm

- solenoid valve, constant closing time: 20...30ms

Supply unit

Pump -power consumption: 250W

-max. flow rate: 150L/min

-max. head: 7,6m

- storage tank: 180L,

- measuring tank: 60L
