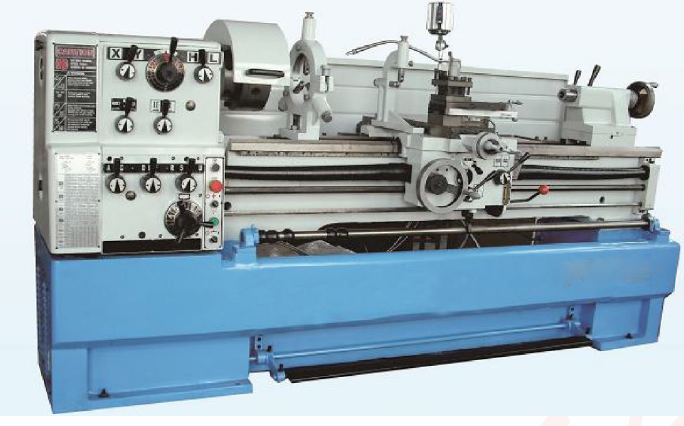

Precision Metal Lathe machine
Order Code: 25268466.2.3
Category: General Lab Equipment V
Lathe machine with standard accessories: machine stand , face plate, 3-jaw chuck, 4- jaw chuck, follow rest,steady rest, working light, foot brake, change gears set, coolant pump, splash guard, dead center, center sleeve, oil gun, tool box with to...
SPECIFICATION
Lathe machine with standard accessories:
machine stand , face plate, 3-jaw chuck, 4- jaw chuck, follow rest,steady rest, working light, foot brake, change gears set, coolant pump, splash guard, dead center, center sleeve, oil gun, tool box with tools
Swing Over Bed 510mm
Max. swing over cross slide 305mm
Max. swing over gap 735mm
Length of Gap 200mm
Distance Between Centers 1000/1500/2000/3000mm
Bed Width 350mm
Spindle nose D1-8 or A1-8
Spindle Bore 105mm
Taper Of Spindle Bore MT7
Spindle Speed 12changes 20-1600r/min
Max .Travel of Cross Slide 280mm
Leadscrew diameter & thread 40mm(19/16'') × 4T.P.I or 6mm
Range of Inch Thread 2-112(60Nos)
Range of Metric Thread 0.2-14(47Nos)
Diametral pitches DP/DP 4-112D.P(50Nos)
Module pitches MP/MP 0.1-7M.P(39Nos)
Range of longitudinal feeds 0.0022-0.0612mm/rev (35Nos)
Range of cross feeds 0.00048-0.01354mm/rev (35Nos)
Total travel of Tailstock quill 180mm
Tailstock quill φ75mm
Tailstock quill taper M.T.5
Spindle drive motor 4P,3PH 7.5kW
Coolant drive motor 2P,3PH 90W
Packing Size 2400/2900/3400/4400×1150×1740mm
Vol./Freq As custoner's requirement
