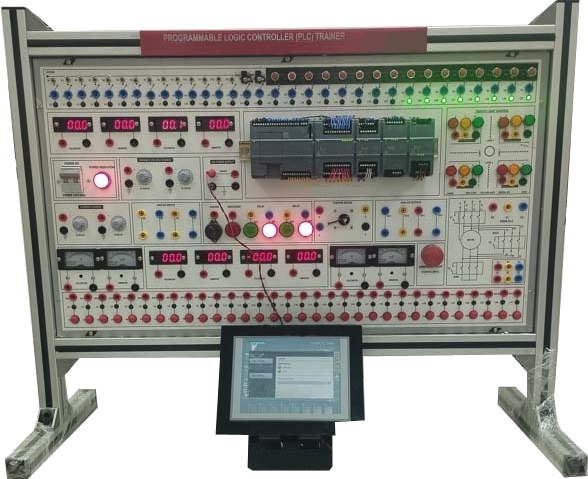

• Brand New PLC Training Kit
• Brand and Model:(to be specified by the bidder)
• Application: training students on automation using PLC and use for    PLC    Programming    Practice,    Automation    Simulation, Vocational & Technical Training, System Integration Exercises.

  The Set Consist of:
•  Product Size (L×D×H) mm: 500 × 200 × 550 (±20mm)
•  Color: Metallic Silver
• Power supply: AC 220V-240V

1. Simens PLC CPU S7-1214C

•  Width of module volume: 304mm
•  Power supply: AC220v 1A
•  Output: DC24/2A
•  Digital input and output
•  Interface of PLC

2. VFD inverter experimental module

• Siemens V20 series with built-in BOP
• Communication: USS, MODBUSRTY communication, V/fV2/fFCC multi-point V/f control
• The I/O schematic diagram of the inverter is printed on the panel which is easy to analyze the working principle

3. HMI MCGS Touch Screen Insertio

•  Input Power: 24V DC
•  Touch screen: MCGS 7-inch, 65535 true color LED backlight widescreen display, touch screen, resistive, 128MB RAM
• Communication: Ethernet, RS232/RS483, USB

  ??????Inverter function parameter setting and operation:
•  External terminal jog control
• PLC, touch screen and inverter communication control
• Communication control between host computer, PLC and inverter
• Inverter control motor is reversed
• Multi-step speed selection frequency controlInverter stepless speed regulationVariable    frequency    speed    control    of    external    analog (voltage/current) mode
• Instantaneous power failure start control
• Motor forward and reverse control of the external terminals of the inverter based on PLCMulti-speed control based on PLC digital method
• Variable  frequency  open  loop  speed  control  based  on  PLC analog quantity
• Variable frequency control based on PLC communication method (USS)
• Basic instruction programming exercises based on touch screen
• Digital display control based on touch screen control

         Included: Ladder programming software Standard Requirement:

• Standard and Compliance: CE, ISO 9001, ISO/IEC 17024, or IEC 61131-3, ISO 13849 certificate or equivalent.
• Supplier Requirement Experiences: at least 5 years.
• Language: English language available on machine and manual.
• Warranty: At least 1 year on Mechanical, Electrical parts and Services.
