Refrigeration Training System

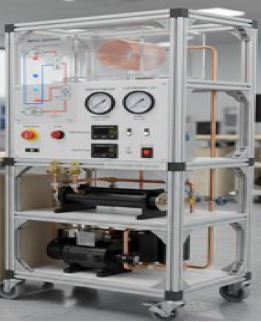

This training set up actual working structure of (Samsung/LG/Panasonic/Godrej or equivalent (technicality and functionality)) make refrigeration system with aluminum profile based trolley type structure for easy to movement with casterwheel.Acrlicminic diagram of actual working principal of refrigeration system provided on panel lefthand side for easy to understand and apply.Refrigeration Workstation which is floor mounted and made up of Aluminium profiles. Desk is  provided with minimum dimensions of 1200mm x 600mm x 35mm(Thickness) on which two students can work at a time. Four revolving wheels is provided with workstation for easy movement. This workstation is comes with standard Computer with mounting facility .Pedestal with 4 drawers in MDF comes with this workstation with minimum total dimension of (wd-400mm x D-450mm x Ht-550mm),The size of the Refrigeration workstation is 1100(L) X500(W) X 1200 (H).in mm Min.
Specification:-
• Compressor : Hermetically sealed compressor, Make Emersion Copeland/Tecumseh
• Refrigeration : Freon R 134 / latest
• Condenser: Coiled Tube Heat Exchanger acts as a condenser.
• Expansion device: Capillary type.
• Evaporator coil: Coiled Tube Heat Exchanger copper coil.
• Energy Meter: One each for power measurement of compressor & heater.
• Pressure Gauge : 2 Nos. for H.P., L.P. measurement
• HP/LP cut out: 1 No. to suit compressor.
• Service valve needle type: 2 No.
• Voltage : Single Phase 220 Volts 50Hz. AC Supply
• Panel Size
The trainer kit of ROHS certified makeThis training set up actual working
Actual Working Refrigerator Simulator.
Specifications:-It open and transparent body to see the operation actual working Refrigerator –make Table Top model with minimum diagram on the front panel to understand the working principal of refrigeration.It should provide testing and troubleshooting of components and devices commonly found in actual air conditioning systems, including the following: Compressor, Condenser coil, Evaporator coil, Capillary tube, Thermostatic expansion valve, Filter-drier, Air filter, Outdoor fan motor, Indoor fan motor, Compressor, contactor, Start relay, Indoor fan, relay, Transformer, Crankcase, heater, Compressor, run, capacitor, Compressor start capacitor, Fan motor capacitor, Room thermostat, Low pressure switch, High pressure switch and Circuit breaker

Supply, installation, commissioning, testing and training of Electronics Repair and Maintenance Laboratory Training Kits as per specification and description.Supply, installation, commissioning, testing and training of Electronics Repair and Maintenance Laboratory Training Kits as per specification and description. The individual connections and its fitting for each Training Kits, its installation and commissioning shall be in the scope of supplier.The individual connections and its fitting for each Training Kits, its installation and commissioning shall be in the scope of supplier.
Safety: The system shall be design with all possible safety interlocks
