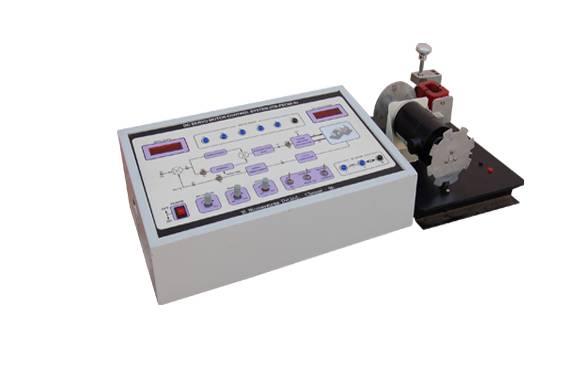

Second order process trainer with P, PI and PID control apply to servomotor trainer kit
Order Code: 26279896.3
Category: General Lab Equipment V
Second order process trainer with P, PI and PID control apply to servomotor trainer kit
SPECIFICATION
1) Open loop response of various process configurations like Combination of time constants, delays etc.
2) Study of closed loop response for above. P, PI, PD and PID design and performance evaluation in each case
3) Application of P/PI/PID controller to DC Servomotor speed/position control
Features:
Simulated blocks
dead time (transportation lag),
integrator,
time constant,
error detector and gain.
PID Controller (Configuration as P, PI, PD or PID)
Prop. Band: 5% to 50% (Gain 2-20)
Integral time: 10msec-100msec.
Derivative time:
2-200msec
Built-in signal sources.
Set Value of -1V to +1V.
Square wave of 1V p-p (min) at 40Hz.
Triangular of 1Vp-p (min) at 40Hz.
Built-in 3 ½ digit DVM for DC measurements
Interconnections
All interconnections are made using 2mm banana Patch cords.
Test points are provided to analyze signals at various points.
All ICS are mounted on IC Sockets.
In-Built Power Supply with Power ON indication
