Sensor Lab

Order Code: 25269344EE.4

Category: General Lab Equipment V

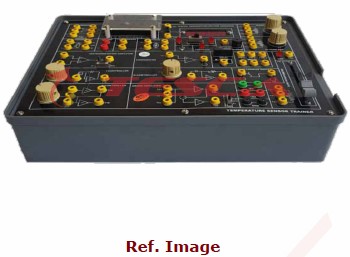

Sensor Lab



SPECIFICATION

Sensor Lab

Techanical Specification

  • Thermocouple
  • RTD
  • Load cell
  • LVDT
  • Smokedetector sensors
  • SpeedsensorusingMagnetic Pickup
  • Limit Switch
  • Photosensors/LDRSensor
  • Optocouplor
  • ProximitySensor
  • GraphicalLCDwithinbuilt processor for viewing the outputWaveforms
  • Sensor,LoadCell,LVDTSensor,Speed Sensor (All Application Fitted on Single Board) Strain Gauge upto 500 micro strain.

TECHNICALSPECIFICATION:

  • LVDT TRANSCUDER
  • To study of LVDT as displacement transducer
  • Builtin A Cexcitation source 2.5 kHz typical
  • Linearvariable differential transformerinmetallicstructure
  • Micrometerattachment with mechanicaldisplacementsystem
  • Displacement range ±3mm
  • LOAD CELL TRANSCUDER
  • To study of Load Cell transducer
  • Builtin DC (+12V) excitation sourceforinternalbridgebalance
  • LoadCellSensorinmetallic structure
  • Load measure upto 1.5Kg
  • RTD(PT-100)TRANSCUDER
  • Study of RTD astemperature measuring transducer
  • RTD (PT-100)probecapacity 100°C to 1000°C
  • Bridge circuitfor transducer
  • Differentialamplifierwith feedback
  • Temperature measurement upto -100°C to 1000°C
  • THERMO COUPLE TRANSCUDER
  • To study of Thermocouple transducer
  • Thermocouple Sensorin metallic structure
  • Temperature Measurement upto -100°C to 1000°C
  • PROXIMITY & MAGNETIC SENSOR
  • Study of measurement of proximity & optical transducer
  • On-board RPM meter for measurement of speed
  • On-boardpotentiometerfor varying speed
  • On-boardpushbuttontoreset the count
  • SMOKEDETECTOR SENSOR
  • Study of smoke detector
  • On-board smoke sensor
  • On-board fire alarm

GENERALSPECIFICATION:

  • Socketsatdifferentplacesfor observing / measuring the Signals
  • Graphical LCD within built processor for viewing the output waveforms
  • Inbuilt DAQ, and standard processing circuits like
  • inverting,noninverting,power,current, instrumentation
  • Differential Amplifier.
  • 220V,Builtin IC regulated power supply
  • Enclosed inanattractive ABS plastic cabinet with cover.
  • Detailed instruction manual
