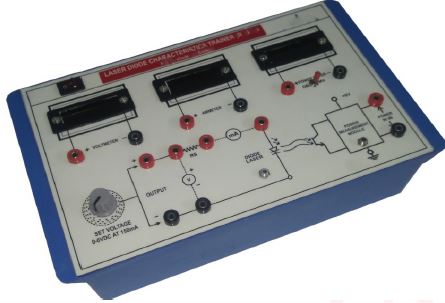

Study of V-1 and L-1 characteristics of a given laser diode
Order Code: 25269275.6
Category: General Lab Equipment V
Study of V-1 and L-1 characteristics of a given laser diode
SPECIFICATION
Study of V-1 and L-1 characteristics of a given laser diode
SCOPE OF LEARNING:
- Study of V-I Characteristics of LED
- Study of P-I Characteristics of LED
TECHNICAL SPECIFICATIONS:
Digital Meters:
- Ammeter 20mA DC.
- Voltmeter 20V DC.
- Power Meter in dBI/mV
Power Supplies:
- DC Supply IC Regulated 0-6V DC, 250mA.
- Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
- Laser Diode 1W
- Power Module for Power Measurement
- Optical Fiber Cable 1/2Mtr.
- Voltage Control through Potentiometer.
- Series Resistor 470E
SALIENT FEATURES:
- Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
- Fuse for Short Circuit protection
- Instruction manual.
- Connections are brought out through 4mm Colored Sockets.
- Patch Cords 4mm.
- The trainer is housed in ABS Plastic cabinet.
- Size of the trainer set 12”x8”
