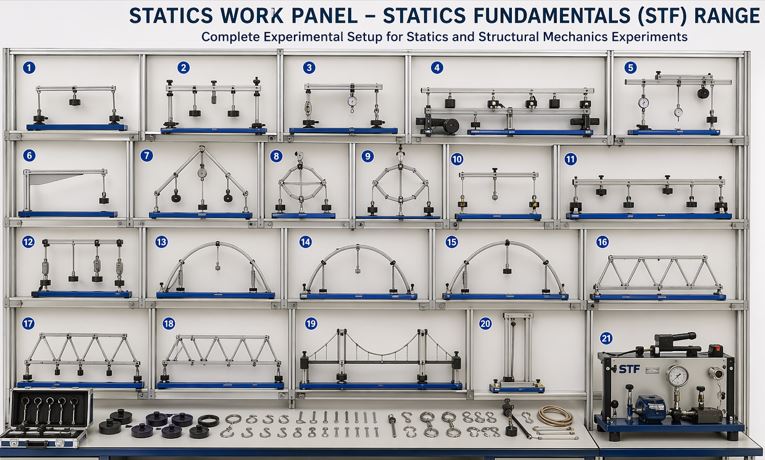

Statics Work Panel Work Panel-Statics Fundamentals (STF) range

Bending Moment

1. Working environment: 10°C~40°C. Humidity<85%
2. Beam length: 700 mm
3. Round Supports: 2
4. Spring balance: 1
5. Load hangers: 3
6. Load cell and Force Indicator with digital output instead of spring balance

Shear Force and Bending Moment

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%
5. Round Supports: 2
6. Spring balances: 2
7. Load hangers: 3
8. Load cell and Force Indicator with digital output instead of two spring balances

Shear Force

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%
5. Round Supports: 2
6. Spring: 1
7. Spring balance: 1
8. Load hangers: 3.
9. Load cell and Force Indicator with digital output instead of spring balance.

Influence Line Apparatus

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%
5. Bridge: End span length: 2 ea. 250 mm, Center span length: 150 mm
6. Vertical Force Supports: 4
7. Rolling loads: 2
8. Dial Indicators: 2
9. Vertical Force Load Cell and Force Indicator with digital output instead of Vertical Force Supports

Unsymmetrical Cantilever

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%
5. Beam section: made from extruded aluminum 500 mm long - Angle section 1 - Channel section 1
6. Rectangular section 1
7. Load hanger: 1
8. Dial Indicators: 2

Equilibrium of Forces

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%
5. Two rings cord
6. Cord marking pen
7. Pulley set: 1 set
8. Nylon cords: 6
9. Load hangers: 6

Equilibrium of a Rigid Body

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%
5. Pulley sets: 3
6. Cords: 3
7. Sliding weight: 1
8. Load hangers and cords: 3
9. Track plates: 2

Three-Dimensional Equilibrium

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%
5. Two rings cord: 1
6. Cords: 4
7. Load hangers with cord: 6

Equilibrium of a Beam

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%
5. Digital weighing machines: 2
6. Spring balance: 1
7. Load hangers: 3

Continuous Beam

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%
5. Test beam: Steel 2 - Aluminum 1 - Brass 1
6. Built-in/Knife Edge Support
7. Vertical Force Supports: 2
8. Pulley set: 1 Cord: 1

Virtual Work

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%

Two Hinged Parabolic Arch

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%

Two Hinged Parabolic Arch, Fixed End

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%

Three Hinged Arch

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%

Redundant Truss

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%

Forces in Truss

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%

Simple Suspension Bridge

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%

Column Buckling

1. Structure: aluminum
2. Bottom with adjustable rubber to adjust the height.
3. The total weight is less than 200kgs.
4. Working environment: 10°C~40°C. Humidity<85%

Constant Pressure Hydraulic Pumping System

1. Maximum pressure 500 bar
2. Hydraulic oil deliver maximum 21/min
3. Maintain a constant pressure @ ±1.0 bar
