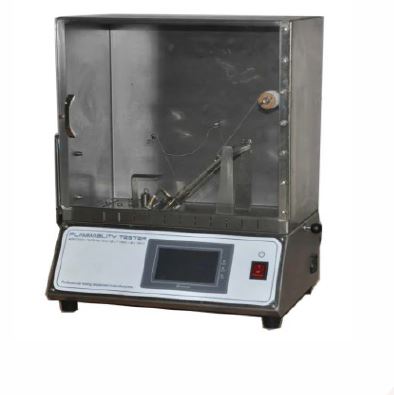

Textile Flammability Tester with accessories

Order Code: 25268654.2.17

Category: General Lab Equipment V

Purpose: For determination of the burning characteristics of textile fabrics under controlled conditions. Parameter/Details Type 45 Degree automatic flammability tester Time Display 0–99.9 s Accuracy 0.1 second Ignition T...



SPECIFICATION

Purpose:

  • For determination of the burning characteristics of textile fabrics under controlled conditions.

Parameter/Details

  • Type 45 Degree automatic flammability tester
  • Time Display 0–99.9 s
  • Accuracy 0.1 second
  • Ignition Time (1 ± 0.05) seconds
  • Specimen Holder Angle 45-degree
  • Size of Specimen 150 × 50 mm
  • Dimension of Holder (Outside) 170 × 101 mm
  • Dimension of Holder (Inside) 152 × 38 mm
  • Distance from Nozzle to Specimen 8 mm
  • Flame Height 16 mm (adjustable)
  • Power Supply 220/110 V, 50/60 Hz, 3A
  • Machine Dimensions (L × W × H) 550 × 330 × 550 mm
  • Machine Weight 21 Kg

Accessories

  • Additional Specimen Holders
  • Calibration Tools
  • Ignition System
  • Gas Supply Hose
  • Exhaust Vent
  • Cleaning Kits
  • Data Logging Software
  • Brushing Device
  • Weight
  • Flame Measuring Tape: 16 mm
  • Sampling Plate
  • Weight: 30g
