SPECIFICATION

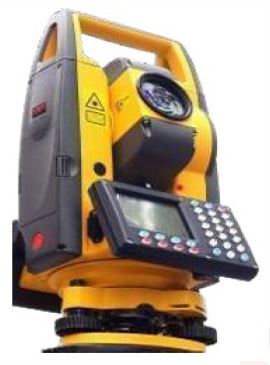

TOTAL STATION SET
ANGLE MEASUREMENT
Accuracy- 1"
Circle Diameter- 79 mm or
Angle Method
Absolute encoding
Detection Method
Horizontal: Dual, Vertical: Dual
TELESCOPE
Magnification - 30 X
Image - Erect
Field of View- 1 Degree 20'
Minimum Focus - Less than 1.2 M
Tube Length - 154 mm
DISTANCE MEASUREMENT RANGE
Reflector Range
Minimum 4000m
Reflector less Range
Mini
Distance accuracy with Reflector
2 mm 2 ppm XD
Distance accuracy Reflector less
3 mm 2 ppm XD
EDM Type
Coaxial
Unit
Meter/US. Feet/ Int. Feet/ Feet-inch
MEASURING TIME
Reflector { Fine <0.3s, Tracking <0.1s} Reflector less [0.3-3s]
Plummet
Laser
KEYBOARD- DISPLAY (IDENTICAL)
Full Alphanumeric Keyboard on Both Side Display
LCD,6 lines, Dual Side
Tilt Sensor
Dual Axis Liquid -Electric
Working Range - 2'
Working Range 0.5-3m
Min. Reading 1 mm
Accuracy - 2'
DATA COMMUNICATION
USB Interface , BLUETOOTH
16 hrs (Li-ion)/ each battery, Should provide dual battery
Dust and Water Protection
IP56
Atmosphere Correction
Manual Input, Auto Correction
Earth Curvature Correction
Manual Input, Auto Correction
Prism Constant
Manual Input, Auto Correction
Save 96000 data block
-20 deg. C to + 50 deg.
Storage Temp.
-40 deg. C to + 70 deg. C
Battery Charger 1 No
Battery Charger 1 No.
Rechargeable Battery Li-ion 2 No.
User Manual -1 No.
Tool kit – 1 No.
Maintenance Facility: After Sales Maintenance Facility(LAB) within Nepal project team will make visit if required. Photographs of the center with Resume of Technician.
