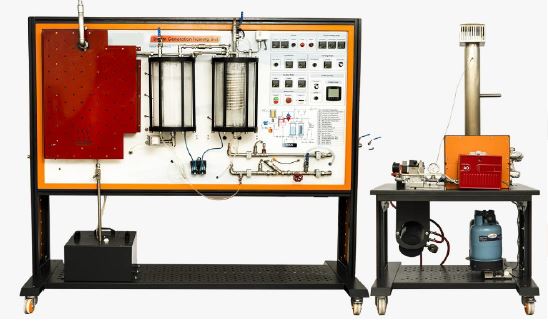

Trainer model of Fire tube Boiler

Key features
A trainer model of a fire-tube boiler is a physical or simulated representation used for educational purposes, training personnel, and assisting plant engineers in understanding the boiler's operation, maintenance, and safety procedures.

Experiment can be done by these apparatus:

• Operation of a steam generator
• Familiarization with safety procedures related to steam generators
• Getting familiar with a variety of industrial components such as the boiler and the accumulator.
• Recognition of Rankin cycle.
• Calculation the total efficiency of steam generator
• Calculation of the heat flux density and the overall heat transfer coefficient
• Familiarization with T-S diagrams and steam charts
• Calculation of: Evaporation rate, Combustion rate, Energy of consumption, Energy losses, Combustion energy, Steam energy

Technical Specifications :

• Burner: Two gas cylinders
• Volume: 7.5 liters each.
• Two gas hoses
• Two check valves Thread connection. Material of construction: Brass material.
• Two ball valves, thread connection. Material of construction: Stainless-steel material.
• One ball valve, Thread connection, Material of construction: Stainless-steel material.
• Accumulator, Diameter, 10 mm thickness, Material of construction: Steel material.
• Filter, thread connection.,Material of construction: Cast iron material.
• Pressure reducing valve:FRG/2MCS DN25,Upstream Pressure Value Pa: 5.5 bar,
• Downstream pressure value Pe: 60-90 mbar,Designed according to EN 88-2 EN13611(Red Colored).
• Two pressure sensors:Measuring Range 0 - 100 mbar (g), Material: Stainless Steel.
• Two pressure gauges:Measuring Range 0- 100 mbar (g)
• Exhaust gas temperature sensor:TYPE k, RANGE 0 - 500-degree Celsius, Stainless Steel material.
• Steam pipelines Saturation temperature sensor:RTD PT100, 0-200-degree Celsius, Stainless Steel material.
• Electric heater:1
• Flange connection, Stainless steel element, 1 KW power (continuously adjustable).
• Superheated steam temperature sensor:TYPE k, Measuring Range 0 - 300-degree Celsius, Stainless Steel material.
• Pressure safety valve:operating Range 0 -10 bar, Phosphoric bronze material.
• Steam pressure sensor: Measuring Range 0 - 10 bar (g), Stainless Steel material.
• Condenser- Condenser temperature sensor: Type k,
• Measuring Range 0 -100 degree Celsius, Material: Stainless Steel.
• Condenser pressure sensor: Measuring Range -1 bar (g), Material: Stainless Steel.
• Level switch: Switch ON or OFF, Temp Rating: -10 ~ +85°C.
• Cooling Water
• Two quick water connections: water hoses connections, Material: Stainless Steel.
• Air ejector pump: Stainless Steel Nozzle.
• Feed water tank
• Upper-level switch: Switch ON or OFF, Temp Rating: -10 ~ +85°C.
• Lower-level switch: Switch ON or OFF, Temp Rating: -10 ~ +85°C.
• Drain solenoid valve: thread Connection, Material: Brass, Normally Close, MinPressure 0 bar.
• Feeding water line
• Positive displacement pump: High pressure diaphragm Pump, Power 1.2 KW.
• Feeding water temperature sensor: RTD PT100, Measuring Range 0 -100 degrees Celsius.
• Non-return valve: Swing type, thread connection, Material: Stainless Steel.
