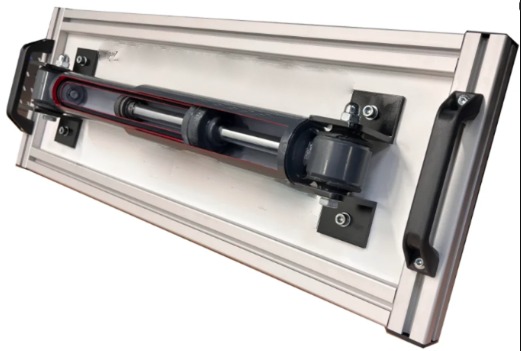

Truck Shock Absorber Cutaway Educational Trainer is a mechanical automotive training tool made from a real heavy-duty shock absorber. The unit is cut open to show key components: piston rod, cylinder, compression and rebound valves, hydraulic chamber, and oil passages. It demonstrates how hydraulic damping works to reduce vibration and stabilize truck suspension under load.

Features

• Cutaway of real truck shock absorber.

• Exposes hydraulic and mechanical components.

• Shows internal parts: piston rod, outer tube, inner tube, oil reservoir, base valve, rebound spring, compression valve, oil seals, guide bush.

• Visualizes damping process with visible oil flow paths.

• Stable frame, no moving parts or power needed.

Value for Students

• Teaches internal structure of truck shock absorber: piston, valves, oil chamber, and seals.

• Shows hydraulic damping in compression and rebound strokes.

• Helps understand how suspension reduces road shocks and maintains vehicle stability.

• Builds knowledge of OEM suspension components used in trucks.

Value for Instructors

• Allows direct visual explanation of damping and suspension principles.

• Safe and durable for repeated classroom use.

• Supports suspension-related topics in automotive education programs.

• Simplifies teaching of heavy-duty vehicle suspension systems..

Specifications

• Type: mechanical cutaway model.

• Parts shown: piston rod, cylinder, base valve, rebound/compression valves, oil chamber.

• Use: automotive training equipment for suspension education.

• Operation: static, non-powered.

• Product number:
