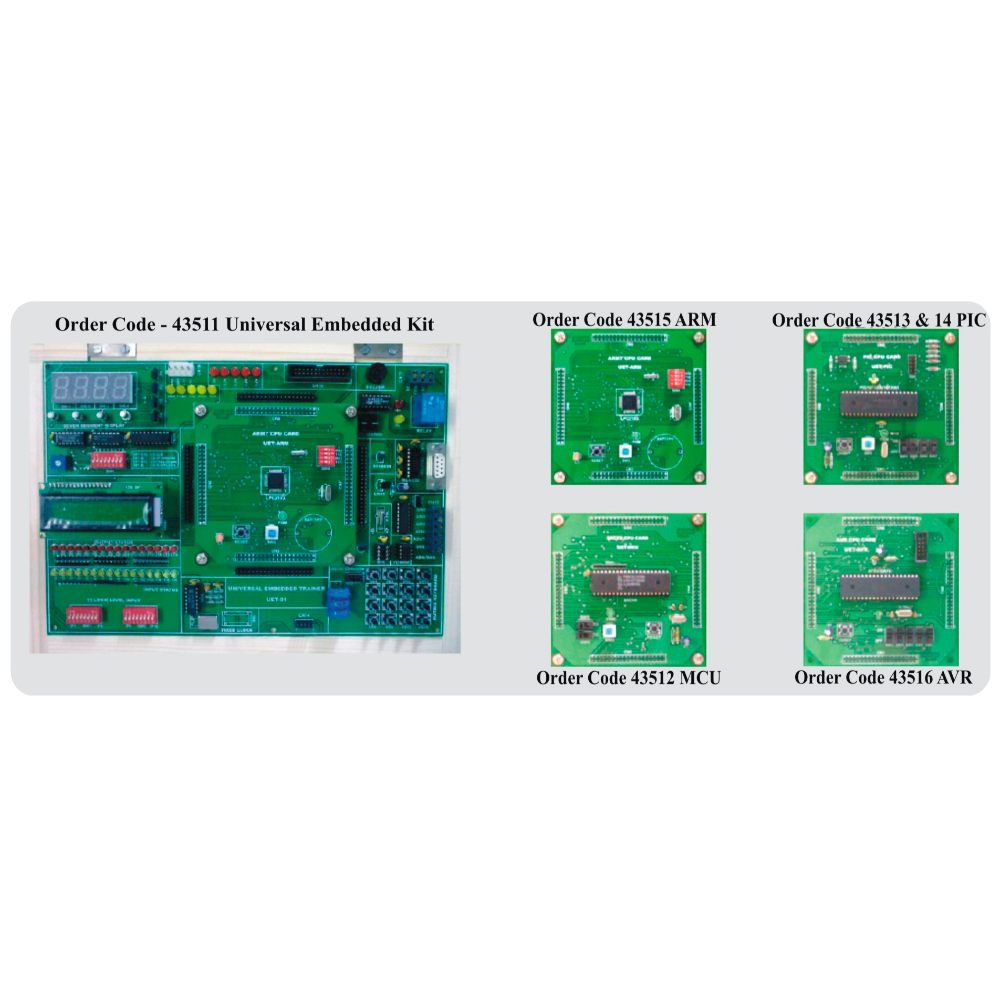

Universal Embedded Trainer
Order Code: 23246825.5
Category: General Lab Equipment III
I/O Expander PCF8574 with selectable address, used as 8 inputs I/O Expander PCF8574 with selectable address, used as 8 Outputs 7-segment common anode display connected to the output of the Expander PCF8574 #2 12-bit DACs with SPI interface a...
SPECIFICATION
- I/O Expander PCF8574 with selectable address, used as 8 inputs
- I/O Expander PCF8574 with selectable address, used as 8 Outputs
- 7-segment common anode display connected to the output of the Expander PCF8574
- #2 12-bit DACs with SPI interface and selectable address
- Serial EEPROM 16K x 8bit 24LC128 memory with serial interface via an I2C bus
- RS232 interface using MAX232C with RS-232 DB9 connector; interface for 5Vdc/3.3 Vdc
- Clock and calendar with 240 x 8-bit RAM with serial interface via an I2C bus and 32.768 kHz external crystal oscillator
- alphanumeric 2 lines x 16 characters LCD; interface for 5Vdc/3.3 Vdc
- Graphic 128 x 64 pixels LCD; interface for 5Vdc/3.3 Vdc
- 4 x 4 keys matrix keyboard
- Line of 8 keys for the bytes inlet port
- Line of 8 LEDs for bytes outlet port
- Line of 4 keys with pull-up for the semibyte inlet port
- Line of 4 LEDs for the semibyte outlet port
- Connector for 26-pin external applications interface
- Connector for power supply of external RS-232 DB9 applications
- Ansley 3x2 female connectors and bushings for the connections with the sub- modules ICSP programmer for microchip microcontrollers
- ISP programmer for ATMEL microcontrollers OUTPUT 1: +1.3 Vdc ÷ +24 Vdc, 1A. Regulated voltage, electronically protected against short-circuits and overloads.
- Lateral knob for selecting the variable voltage.- OUTPUT 2: 24 Vac +24 Vac, 0.5A.
- Protected with fuse.- OUTPUT 3: +5 Vdc
- 2 A. - OUTPUT 4: +12 Vdc ? 2 A. Training should be performed by the bidder. Instruction Manual/Operation Manual/Experimental Manual/Catalog should be supplied by the bidder.
