Universal Governor Apparatus
SPECIFICATION
Key features –

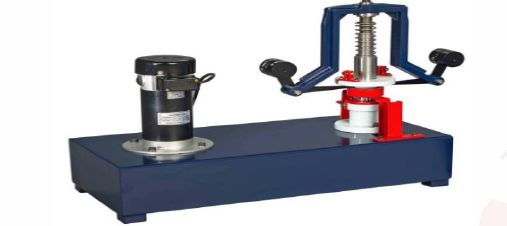

The Universal Governor Apparatus is a motorized laboratory test rig designed to demonstrate
the operational principles of various centrifugal governors, including Watt, Porter, Proell, and
Hartnell types. It measures speed, sleeve lift, and controlling force to analyze governor
sensitivity, stability, and speed regulation under varying loads
- Geometry and operation of a Porter, Proell and Hartnell governor
- To observe the lift off speed of the three different types of governor
- To observe the effect of varying sleeve weight or spring force on the operation of a governor
- To observe the stability of a governor
- To compare actual results with calculated theoretical values
Technical Specifications
- Porter Governor radial travel range: 80….100mm (approximately)
- Proell Governor radial travel range: 75….100mm (approximately)
- Hartnell Spring rates: 0.39N/mm and 0.97N/mm (approximately)
- Porter and Proell Sleeve masses: 58g (approximately)
- Porter and Proell masses: 157g (approximately)
- Hartnell masses: 118g (approximately)
- Hartnell mass adjustment range: 20mm (approximately)
- 3mm increment indications on vertical shafts
- Speed indicator Range – 4.00 to 9999rpm,
- Relay rating – 5A @ 230VAC/24VDC,
- Sensor supply – 12VDC, 30mA,
- Accuracy – 0.05%,
- Dimmer 2Amp – open type, 230 VAC.
- Proximity Switch M – 12, PNP/NO,
- Max load – 300 mA, 8mm, 10 – 30VDC.
- Motor 1/4th HP, 1500rpm, PMDC,
- Flange mounted, 0 –180 VDC,
- Graduated Scale 0-140 mm
