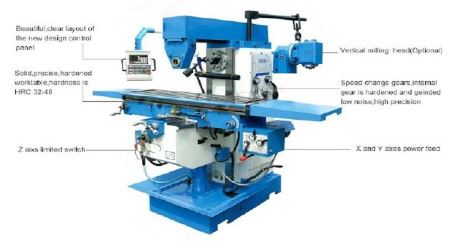

UNIVERSAL MILLING MACHINE

The universal milling machine (3-axis) + C/W 4 set of tools shall exhibit the following technical features:

1. Working Surface 1270 x 320mm
2. T-Slots, Number and Size 3/14mm
3. T-Slots Centres 70mm
4. Longitudinal Travel 730mm
5. Cross Travel 290mm
6. Vertical Travel 380mm
7. Load Capacity 200kg
8. Table Swivel Degree 45°
9. Spindle (Vertical)
10. Spindle Taper ISO40
11. Number of Speeds 8
12. Speed Range 90-2000rpm
13. Spindle Centre to Column 220mm-560mm
14. Spindle to Table 120-500mm
15. Quill Travel 120mm
16. Drawbar M16
17. Milling and Drilling Capacity in Steel (S235JR) - Vertical
18. End Milling Capacity 100mm
19. Vertical Milling Capacity 25mm
20. Tapping Capacity 16
21. Drilling Capacity 30mm
22. Spindle (Horizontal)
23. Spindle Taper ISO40
24. Number of Speeds 12
25. Speed Range 60-1350rpm
26. Quill Travel 120
27. Spindle to Table 10-340mm
28. Drawbar Standard
29. Milling and Drilling Capacity in Steel (S235JR) - Horizontal
30. End Milling Capacity 100mm
31. Horizontal Milling Capacity 100mm
32. Number of Feeds 8
33. Longitudinal Feeds 20-800mm/min
34. Cross Feeds 20-800mm/min
35. Vertical Feeds 10-400mm/min
36. Rapids Longitudinal 1000mm/min
37. Rapid Cross 1000mm/min
38. Rapid Vertical 500mm/min
39. Spindle Drive Motor 2.2kw(2.95hp)
40. Feed Motor 0.75kw(1.005hp)
41. Coolant Motor 0.04kw(0.05hp)
42. Overall Dimensions (L x W x D) 1680x1640x2200 mm
43. Net Weight 1650kg

Milling Machine Accessories:

1. 4 axis DRO system, 3 axis power feed, Work lamp, Coolant system, Table guard, Slotting Head, Rack 400mm super open machine vice, 200mm
2. Horizontal/vertical rotary table, Tailstock for Rotary table, Dividing plate set for rotary table, 3-16mm keyless drill chuck & arbor, ISO40-MT3 sleeve, ISO40-MT2
3. Sleeve, ISO40-MT1 Sleeve, ISO40-R8 Sleeve, 3” Boring head, ISO40 Boring head shank, ¾” boring tool set, ,
4. Toolbox, Manual & parts list
5. Milling Operation eLearning Software ( to be installed on Smart Classroom Server)
6. INTRODUCTION TO THE UNIVERSAL MILLING MACHINE
7. Milling machine components
8. Operation of a mill
9. Vertical mill part identification
10. Horizontal mill part identification
11. Controls on a milling machine
12. Milling machine safety
13. Safety rules that should be followed before starting and during a milling operation
14. Safety Checkout
15. Mill operation
16. Function and operation of the micrometer collar
17. Backlash affects the accuracy of a mill
18. Mounting and aligning a workpiece
