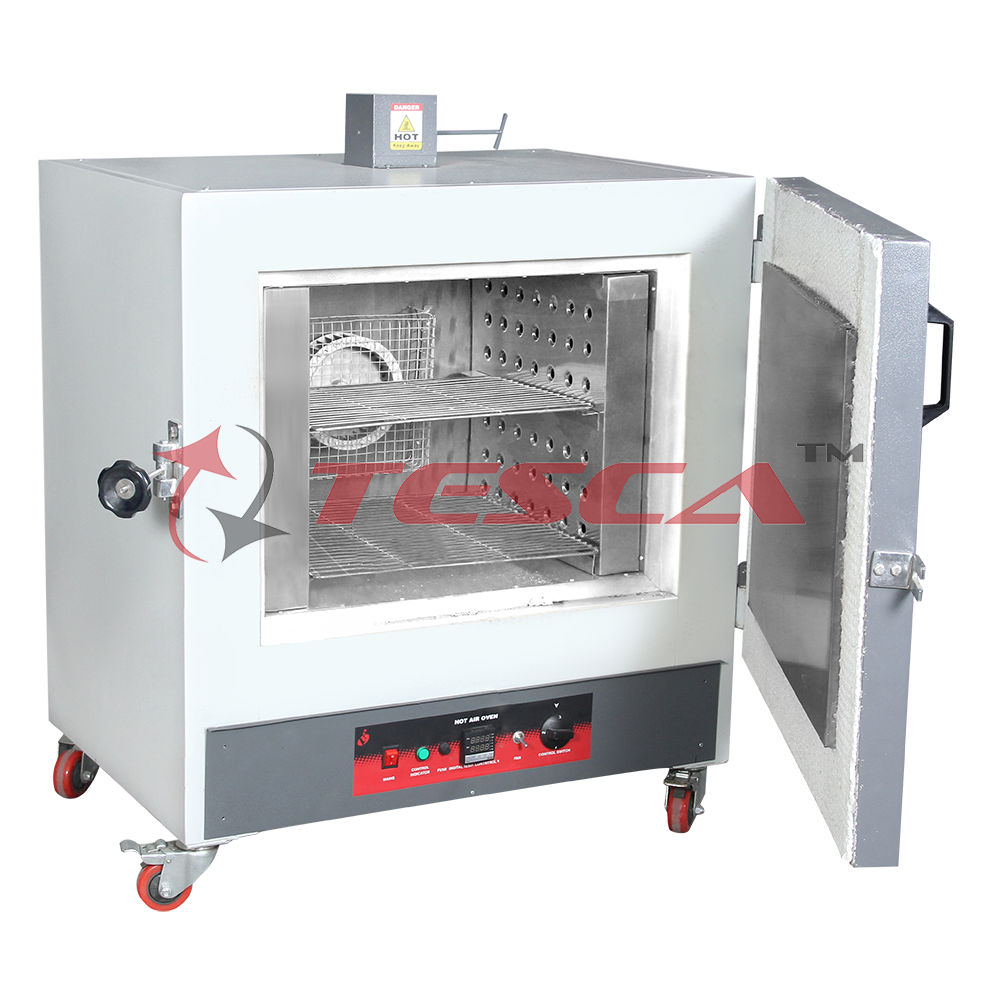

Universal Oven - Digital - 300°C 60 X 45 X 45

Order Code: MT537

Category: General Equipment's

Features: With heating elements on three sides, ensuring uniform temp. distribution throughout the chamber Sealed and enclosed heaters to working chamber for minimum heat loss 80/20 nichrome heating elements, ensuring long lasting and conti...



SPECIFICATION

Features:

  • With heating elements on three sides, ensuring uniform temp. distribution throughout the chamber
  • Sealed and enclosed heaters to working chamber for minimum heat loss
  • 80/20 nichrome heating elements, ensuring long lasting and continuous heating
  • Special heavy duty Stainless steel lock and door hinges with spring and roller mechanism
  • Stainless steel crimped wire mesh Shelves to  withstand heavy load and minimum resistance to air circulation for better heat distribution
  • Provision to add more shelves, as per requirement of test ? Shelves adjustable to place test samples or Glasswares of varying dimensions
  • Adjustable air ventilation at top
  • Complete with pilot indicating lamps, 2 meter cord wire and power plug



Technical Specification

Working size in cm ( H x W x D)

60 x 45 x 45

No of Shelves

03 Numbers

Rating

3 KW

Outer Chamber

CRC powder coated

Inner chamber

Mirror polished S.S. 304 Grade material

Insulation

100mm high density Glasswool insulation on all sides for minimum heat loss

Heating element

With heating elements on three sides, ensuring uniform temp. distribution throughout the chamber

Heater

Sealed and enclosed heaters to working chamber for minimum heat loss

Temperature Range

50°C to 300°C

Controller

Auto tune dual display digital controller

Control Accuracy

± 1°C or better

Heating element

80/20 nichrome heating elements, ensuring long lasting and continuous heating

Door lock

Special heavy duty Stainless steel lock and door hinges with spring and roller mechanism

Shelves

Stainless steel crimped wire mesh Shelves to withstand heavy load and minimum resistance to air circulation for better heat distribution

Other provisions

Provision to add more shelves, as per requirement of test Shelves adjustable to place test samples or Glass wares of varying dimensions

Ventilation

Adjustable air ventilation at top

Blower

Motorized blower for forced air circulation

Operation on

220/230V AC single phase

Complete with

Pilot indicating lamps, 2 mtr. cord wire and power plug.

Overall Dimensions

635 X 720 X 950 (L X W X D) mm
